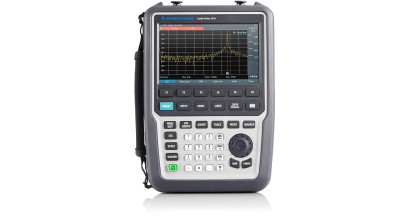

Rohde&Schwarz ZPH Cable and Antenna Analyzer (2MHz~3GHz)

Manufacturer: Rohde&Schwarz

Model : ZPH

Warranty : 12 months

Frequency range: 2 MHz to 3 GHz

Advanced frequency range: 2Mhz ~ 4 Ghz (Mua thêm ZPH-B4).

Frequency resolution: 1 Hz

Number of Port:1

Reflection Coefficient:

+ Measurement speed:0.3 ms/point

+ Measurement parameter: Extent, VSWR, error distance

Cable error measurement:

+ Giải : 1/2/5/10/20/50/100/120/150 dB

+ Measurement parameter : Loss (db), VSWR

+ Cable length max : 1500m

DC voltage DC : 50V

Display resolution: WVGA 800 × 480 pixel

Rechagable battery (Optional) : 11.25V/72Wh

Dimension (W × H × D): 202 mm × 294 mm × 76 mm

Weight: 2,5 kg (5,5 lb)

Automatic calibration: Có

Scope of Delivery: Power cord, User manual
