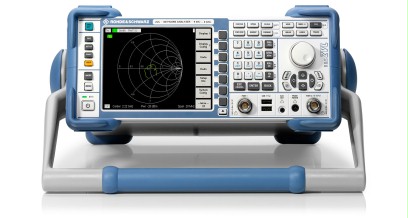

Rohde&Schwarz ZVL13 Vector Network Analyzer (9kHz~13.6GHz)

Manufacturer: Rohde & Schwarz

Model: ZVL13

Warranty: 12 months

Network analysis

Frequency range: 9 kHz to 13.6 GHz

Measurement point: 201

Measurement time: < 75 ms

Data transfer (201 measurement points):

Via RSIB over 100 Mbit/s LAN: 1.5 ms

Dynamic range at 10 Hz measurement bandwidth: 100 dB, typ. 105 dB

Output power: –5 dBm, typ. 0 dBm

Measurement bandwidths: 10 Hz to 500 kHz in 1/2/5 steps

Weight (without battery): < 7 kg (15.43 lb)

Number of measurement points per trace: 2 to 4001

Operating system: Windows XP

Spectrum analysis

Frequency range: 9 kHz to 13.6 GHz

Frequency uncertainty: 1 × 10–6

Resolution bandwidths: 300 Hz đến 10 MHz

Video bandwidths: 10 Hz to 10 MHz

I/Q demodulation bandwidth: 20 MHz

SSB phase noise at 500 MHz: typ. –103 dBc (1 Hz)

DANL : < –140 dBm (1 Hz)

IP3:> +5 dBm, gõ. +12 dBm

Detectors: max/min peak, auto peak, RMS, quasi peak, average, sample

Level measurement uncertainty (95 % confidence level): < 0.5 dB

Accessories: Manual, Power Cable
