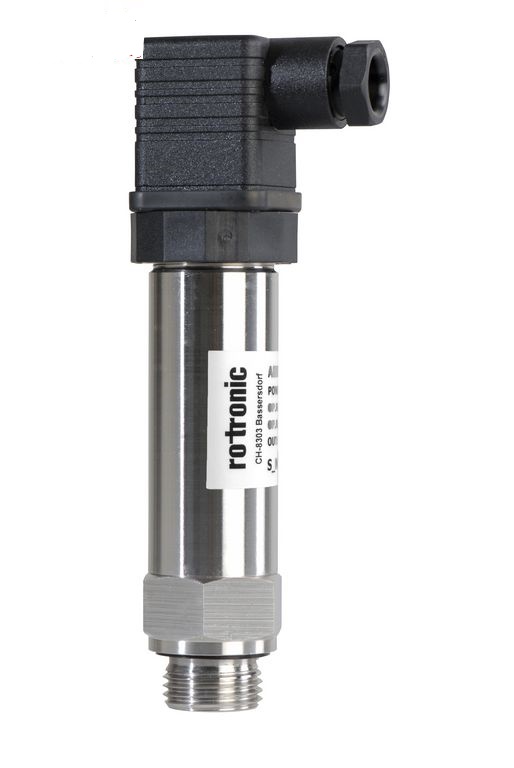

Reliable measurement of process pressure.
Pressure transmitters measure the pressure of neutral gases and nitrogen in piping and closed containers. The pressure of the medium being measured acts on a pressure cell, which converts the pressure into an electronic signal.
Field of Application:
The process pressure transmitters are ideal for measurement of absolute pressure in applications with fast temperature changes and in compressed air, HVAC and pneumatic systems.
Features:
Compact and robust construction
Piezo-resistive steel sensor
Zero and range adjustable with internal potentiometer
IP protection IP65
DEVICE TYPE: Process pressure transmitter
PARAMETERS: Absolute pressure
RANGE OF APPLICATION: -30…80 °C
MEASURING RANGE: 0…10 bar
MEASUREMENT PRINCIPLE: Piezo-resistive steel sensor
PRESSURE RESISTANCE: 15 bar
MEDIUM: Air and non-aggressive gases
ACCURACY AT 20 °C ±2 K (LINEARITY, HYSTERESIS, REPEATABILITY, DEVIATION OF START AND END VALUE OF THE MEASUREMENT RANGE): ±0.25 % FS max.
TK ZERO: ±0.03 %FS/K
TK RANGE: ±0.03 %FS/K
POWER CONSUMPTION: 15…30 VDC
LONG-TERM STABILITY: ±0.2 % full scale / year
CONNECTION: G ½” male thread
SEAL RING: Viton
ELECTRICAL CONNECTIONS: Hirschmann (DIN 43650)
ANALOG OUTPUT SIGNAL (STANDARD): 4…20 mA, two-wire
PERMISSIBLE LOAD: <750 Ω
HOUSING: Stainless steel 1.4301
DIAPHRAGM: Stainless steel (1.4404)
IP PROTECTION RATING: IP65
MOUNTING: 90 ° to pressure pipe (max. 30 ° inclination)
CE / EMC CONFORM: EMC Directive 2004/108/EC, EN 61326
STORAGE AND TRANSPORT CONDITIONS: -30…80 °C
DIMENSIONS: 137 x 41 x 27 mm
