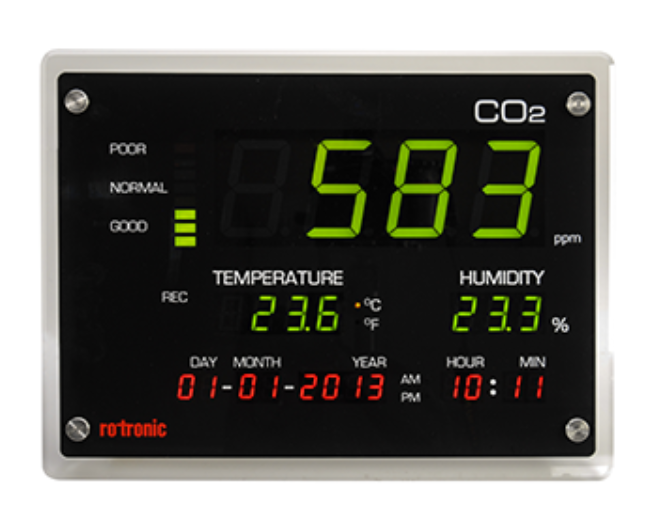

Rotronic CO₂ display CO2 Data Loggers (0…9999 ppm)

General

Parameters: CO₂, relative humidity and temperature

Memory capacity: 19,500 values with time stamp, automatic recording (%rh / °C / ppm)

Dimensions: 330 × 250 × 50 mm

Weight: 1400 g

Alarm: Visual, adjustable for CO₂ measurement

Current consumption: 700 mA

Application temp. housing / electronics: 0…50 °C / 0…95 %rh, non-condensing

CO₂ measurement

Measurement principle: Infrared (NDIR) with automatic calibration (ABC)

Measurement range: 0…9999 ppm

Accuracy at 23 °C ± 5 K: ±30 ppm ±5 % of the measured value @ 0…5000 ppm

Null drift: <10 ppm/year

Maintenance: No maintenance (standard indoor applications)

Humidity measurement

Sensor: ROTRONIC HYGROMER® IN-1

Measurement range: 0…100 %rh

Accuracy at 23 °C ± 5 K: ±2 %rh (10…90 %rh), others ±5 %rh

Adjustment points: 35, 80 %rh

Long-term stability: <1.5 %rh/year

Response time: <30 s t63, without filter

Temperature measurement

Sensor: NTC

Measurement range: -20…60 °C

Accuracy at 23 °C ± 5 K: ±0.3 K

Response time: 4 s t90
