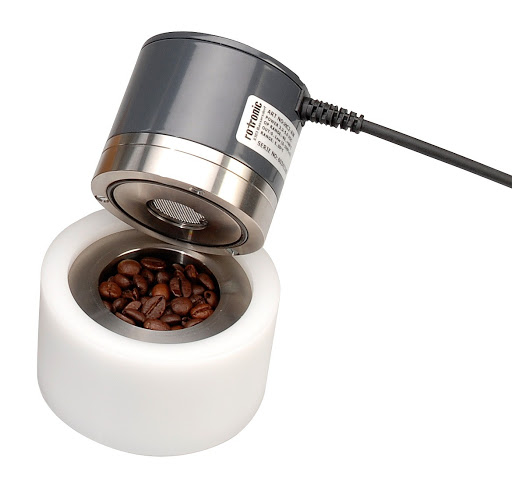

Rotronic HC2-AW AW PROBE

Applications

For water activity measurements in bulk materials such as flour, grain, spices, etc. For solid and pasty products such as meat, sausage as well as oils, fats, etc.

Features:

• On/Off switch

• UART interface for direct connection to a PC

• Power supply via UART interface

• Adjusted at 23 °C and 10, 35, 80 %rh

•For use with HygroLab C1, HP23-AW-A

PROBE TYPE: Measurement probe with UART interface

FOR USE WITH: HygroLab C1, HP23-AW-A

RANGE OF APPLICATION: -40…85 °C (-40…185 °F) / 0…100 %RH

ACCURACY AT 23 ±5 °C: ± 0.008 aw / 0.8 %rh / ±0.1 K

POWER SUPPLY: Via display instruments

LONG-TERM STABILITY: <1 %rh / year

HUMIDITY SENSOR: HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B

TEMPERATURE DEPENDENCE: 0.001 K/K, 0.0002 aw/K

FILTER CARTRIDGE: Wire mesh filter with 20…25 μm pore size

RESPONSE TIME T 63: <20 sec.

PSYCHROMETRIC CALCULATIONS: Dew or frost point

START-UP TIME: 1,5 s

MEASUREMENT INTERVAL: 1 s

AW-QUICK MODE: Yes

COMMUNICATION INTERFACES: UART

MATERIAL: Stainless steel, aluminum

IP PROTECTION RATING: IP20

FDA / GAMP: FDA 21 CFR part 11 / GAMP5

CE / EMC CONFORM: EMC 2008/108/EG

DIMENSIONS: ø 68 x 60 mm
