Test voltage:
AC 100V ±10%, 50Hz
AC 40V ±10%, 50Hz
AC 10V ±10%, 50Hz
AC 1V ±10%, 50Hz
Test Range:
Capacitance: 0.1μF～6000μF Accuracy: ±(reading 1%+0.01μF)
Inductance: 50μH～20H Accuracy: ±(reading 3%+0.05μH)
Current: 5mA～2A Accuracy: ±(reading 3%+0.05mA)
Resistance: 20mΩ～20kΩ Accuracy: ±(reading 3%+0.1mΩ)
Power Supply: AC220V±10%, 50±1Hz
Operating Temperature: -20℃～+40℃
Relative Humidity: ≤85%, non-condensing
Dimension: 365×285×170mm
Weight: Instrument Box: 7kg Wire Box: 8kg

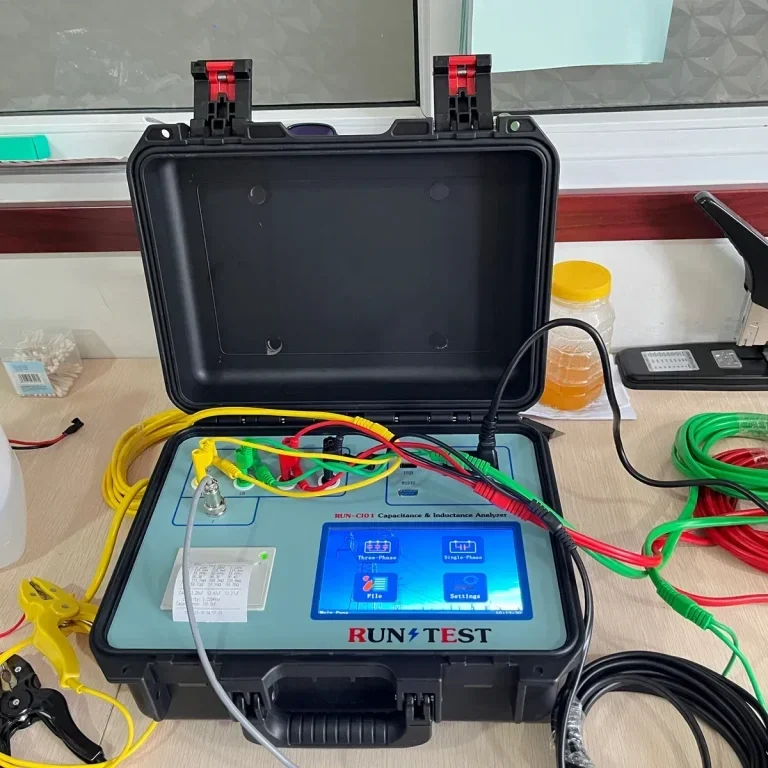

Main features for Power Transformer Impendence test instrument
1. Measuring the single capacitance of a group of parallel capacitors (both single-phase capacitance and three-phase capacitance can be measured) without disconnecting the wires. At the same time, this instrument can also measure the inductance of various reactors to meet various requirements on site use.
2. Displaying the measured capacitance value or inductance value along with displaying the measured voltage, current, power, frequency, impedance, phase angle and other data.
3. 7-inch high resolution LCD touchscreen, easy on-site operation.
4. Internal data storage up to 200 sets.
5. USB Port for data storage
6. Built-in high-speed micro printer
7. The product is in our Transformer Test Program
