Range: 0.9～10000
Accuracy:
±(Reading×0.1% + 2 digits) (≤500)
±(Reading×0.2% + 2 digits) (>500～3000)
±(Reading×0.3% + 2 digits) (>3000)
Resolution Ratio:
0.9～9.9999 (0.0001)
10～99.999 (0.001)
100～999.99 (0.01)
1000～9999.9 (0.1)
10000 and above (1)
Working Power Supply: The built-in battery or external charger; charger input 100–240VAC, 50/60Hz
Charging Time: About 2 hours
Instrument Weight: 1.7kg
Instrument Dimension: 246mm (L) × 156mm (W) × 62mm (H)
Use of Temperature: -10℃～+50℃
Relative Humidity: ≤90%, no dew
A Turns Ratio Test Equipment set contains:

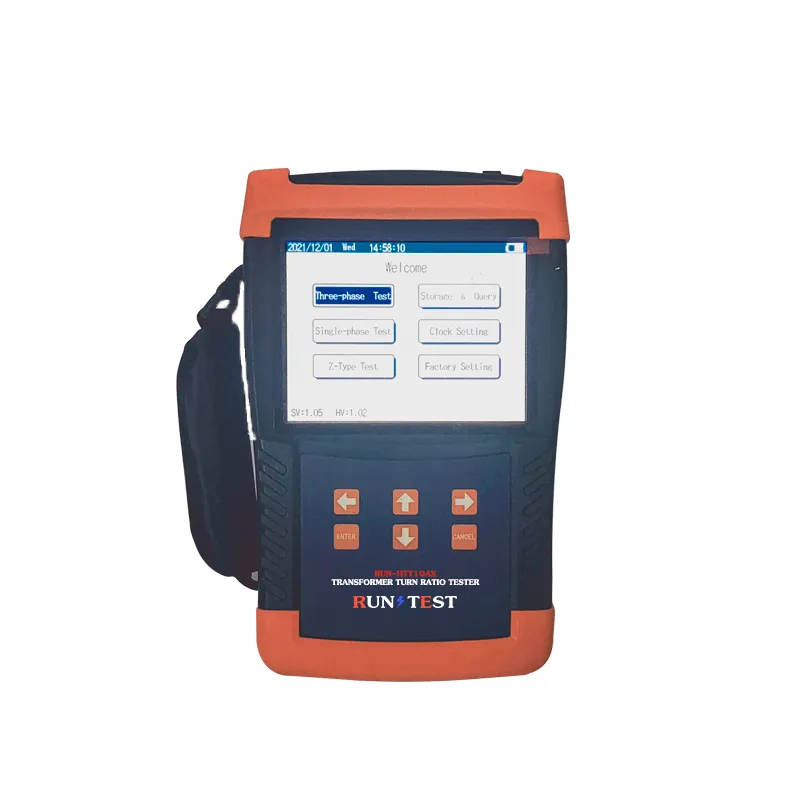

√ 1 Hand-held transformer turns ratio tester
√ 1 Set of test lines (red and black each)
√ 1 Charger (optional)
√ 1 External printer (with printing cable attached)
√ 1 Wrist band (attached to the hand-held tester)
√ 1 Printed user manual
√ 1 Copy of certificate and factory test report
Features of Transformer Turns Ratio Meter/3 Phase TTR Tester
1. Lithium battery power supply or 100-240V AC power supply is self-adaptive. After one charge, more than 100 transformers can be continuously tested in the ratio group. The test process is simple and convenient.
2. It has the function of blind measurement, that is, to perform variable ratio and group test when there is no connection
between high and low voltage.
3. Based on the test of conventional transformer, Z-type transformer and PT sample, the polarity test function of CT variable ratio is added, and the application field is wider
4. Wide range and high accuracy, the variable ratio measurement range can reach 10,000, and the test accuracy can be guaranteed 0.3% when the maximum value is 10,000.
5. It has perfect protection functions such as reverse connection protection and output short circuit protection.
6. 6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.
7. Equipped with external printer, facilitate data printing
8. It can be stored locally and on USB memory.
