Measuring range:
Dew point:-80℃~+20℃
Micro water content:0~19999ppm
Measurement accuracy:
±2℃(-60℃~-50℃)
±1℃(-49℃~+20℃)(Scope of work)
Resolution ratio:
Dew point:0.1℃
Micro water content:1ppm
Measuring time:≤3 Minutes/point
Sampling flow:0.6~1.0L/min
Display mode: Color touch screen display, full Chinese interface, with backlight
Power supply: lithium battery can work continuously for 8 hours with overcharge protection
Inspection method: self calibration function after startup
Working temperature:-40℃~+80℃

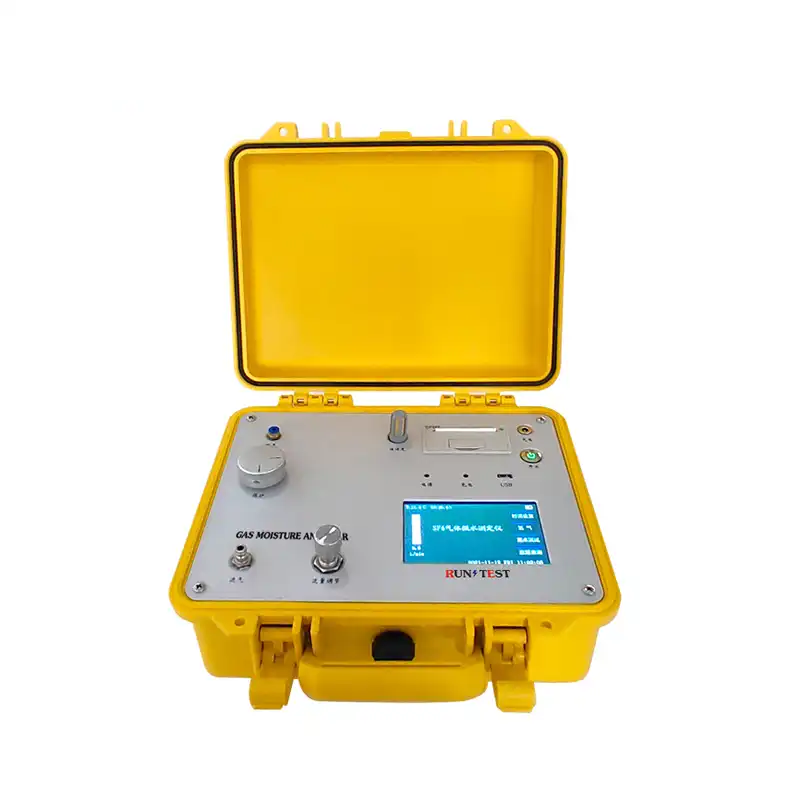

SF6 Gas Trace Moisture Tester
SF6 Gas Trace Moisture Tester adopts intelligent self calibration technology, bright color display (touch screen), high precision, fast response, free switching of multiple functions, friendly human-computer interaction interface, real-time display of test data and dynamic display of measurement curve. At the same time, the instrument also has an automatic drying tube, which can shorten the measurement time. The instrument has built-in high-capacity rechargeable lithium battery pack, provides ultra long standby time, and is equipped with standard USB interface to export historical data.
Applications of this Sf6 Gas Moisture Dew Point Analyzer
It can be applied to the humidity measurement of air, nitrogen, inert gas and any gas without corrosive medium, especially the humidity measurement of SF6 gas. It can be used by departments such as electric power, petrochemical, metallurgy, environmental protection and research institutes.
SF6 purity analyzer Main features
SF6 Analyzer is
1) Easy to use and carry, very fast measurement
2) Wide range of applications: Humidity measurement of air, nitrogen, inert gas and any gas that does not contain corrosive media, especially the humidity measurement of SF6 gas, which can be used by electric power, petrochemical, metallurgy, environmental protection, research institutes and other departments
3) Gas saving: the gas consumption during measurement is only about 2L (101.2kpa)
4) Data storage up to 100 sets
5) Comprehensive display: The LCD screen directly displays the dew point, micro water (ppm) at current temperature, micro water value at 20 ℃, ambient temperature, ambient humidity, time and date, battery power, etc.
6) Real-time data curve tracking, dew point change trend is clear and intuitive
7) USB interface for data export
8) Built-in Battery: built-in 6800mAh rechargeable lithium battery, work continuously for 8 hours
