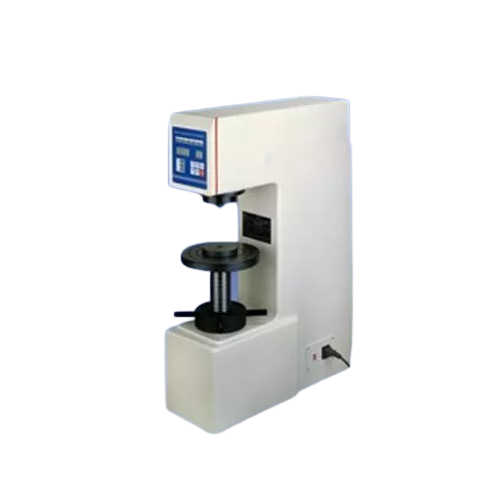

SADT HB-3000E Brinell Hardness Tester (8~650HBW)

Test range: 8~650 HBW (hardmetals steel ball)

Scale: HBW2.5/62.5, HBW2.5/187.5,

HBW5/125, HBW5/750, HBW10/100,

HBW10/1500, HBW10/3000,

HBW10/250, HBW10/500,

HBW10/1000

Brinell test force test: 62.5kgf(612.9N),100kgf(980.7N),125kgf(1226N),187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N),

1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)

Minimum unit of measurement: 5μm

Test force dwell time: 5-60s

Magnification of microscope x: 20x for reading microscope

Micrometer resolution (mm): 0.005

Max. height of specimens (mm): 220

Max. depth of specimens (mm): 135

Power: AC220V, 50-60Hz

Dimension (DxWxH) (mm): 550 x 236 x 750

Net weight (kg): 123
