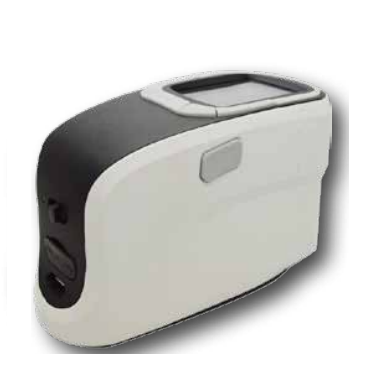

SADT SC100A Spectrophometer (400nm-700nm;Standard package)

Illumination / observation system: d/8(Diffused lighting, 8 degrees observe angle), SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement, (conforms to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards)

Illumination light source: CLEDs(entire wavelength balanced LED light source)

Sphere Size: Φ40mm, diffused reflection surface coating

Sensor: dual light path sensor array

Wavelength range: 400nm-700nm

Wavelength interval: 10nm

Half spectral width: 5nm

Reflectivity range: 0 to 200%

Reflectivity resolution: 0.01%

Observation angle: 2°/ 10°

Measurement light source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF

Displayed data:

SPD distribution/data, sample’s color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area, history data color simulation, manual input standard sample, generate measurement report

Measurement time: 1 second

Measurement time interval: 2 seconds

Test Aperture:

10mm

4mm/6mm(Optional)

Color space: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance

Color difference formulas: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00

Other colorimetric indices:

WI(ASTM E313-10, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313, CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness

Repeatability: light splitting reflectivity, standard deviation within 0.08%

color values;ΔE*ab<=0.03 (After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum: 0.05

Battery capacity: rechargeable, 10000 continuous tests, 7.4V/6000mAh

Interface: USB

Data storage: 20000 test results

Light source life: 5 years, 1.5 million tests

Dimension: 181*73*112mm (L*W*H)

Weight: about 550g (does not include battery’s weight)

Display: True color screen that includes all colors

Work environment: 0°C~45°C, relative humidity 80% or below( at 35°C ),no condensation

Storage environment: -25°C - 55°C,relative humidity 80% or below(at 35°C ),no condensation
