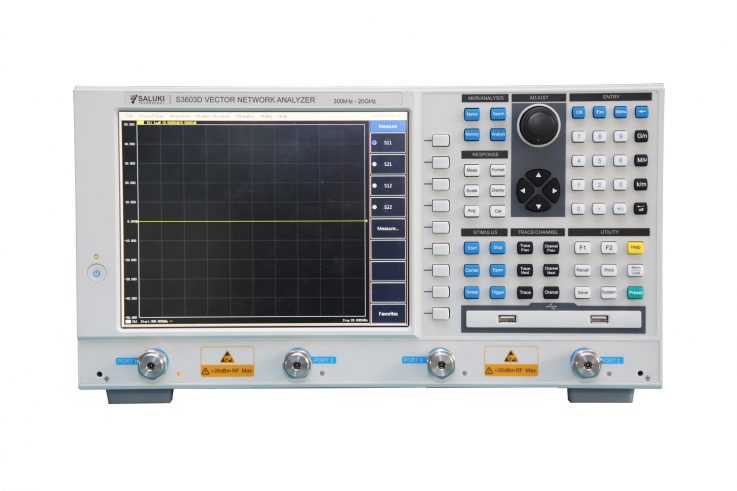

SALUKI S3603D Vector Network Analyzer (300 kHz ~ 20 GHz)

Frequency Range: 300 kHz to 20 GHz

Frequency Resolution: 1 Hz

Frquency Accuracy: ±1×10^-6 , (23°C±3°C)

System Dynamic Range (2-port)

300kHz – 100MHz: 95dB

100MHz – 1GHz: 110dB

1GHz – 6GHz: 120dB

6GHz – 8GHz: 117dB

8GHz – 10GHz: 115dB

10GHz – 15GHz: 110dB

15GHz – 20GHz: 100dB

System Dynamic Range (4-port)

300kHz – 100MHz: 90dB

100MHz – 1GHz: 100dB

1GHz – 6GHz: 115dB

6GHz – 8GHz: 110dB

8GHz – 10GHz: 105dB

10GHz – 15GHz: 100dB

15GHz – 20GHz: 90dB

Transmission Track

300kHz – 10MHz: ±0.03dB

10MHz – 3GHz: ±0.04dB

3GHz – 6GHz: ±0.10dB

6GHz – 20GHz: ±0.15dB

Effective Directivity

300kHz – 10MHz: 46dB

10MHz – 3GHz: 42dB

3GHz – 6GHz: 38dB

6GHz – 20GHz: 36dB

Test Points: 1 to 16001

Average Factor: 1 to 1024

Channel: Max. 64 independent channels

IF Bandwidth: 1Hz – 5MHz (Stepping by 1,2,3,5,7)

Magnitude Display Resolution: 0.001dB/div

Reference Level Magnitude: -500dB to +500dB

Input Reference Phase Range: -500° to +500°

Port Connector Type: 3.5mm (male), 50 Ω impedance

Number of Test Ports: 2 / 4

Number of Test Receivers: 2 / 4

Peripheral Interface: USB, GPIB, VGA, LAN

Operating System: Windows 7

Dimension: 436 (W) × 236.5 (H) × 410 (D) mm

Weight: 18 kg

Display: 10.4-inch high brightness LCD

Power Consumption: Max. 150W

Power Supply: 50Hz single phase 220V or 50Hz/60Hz single phase 110V AC
