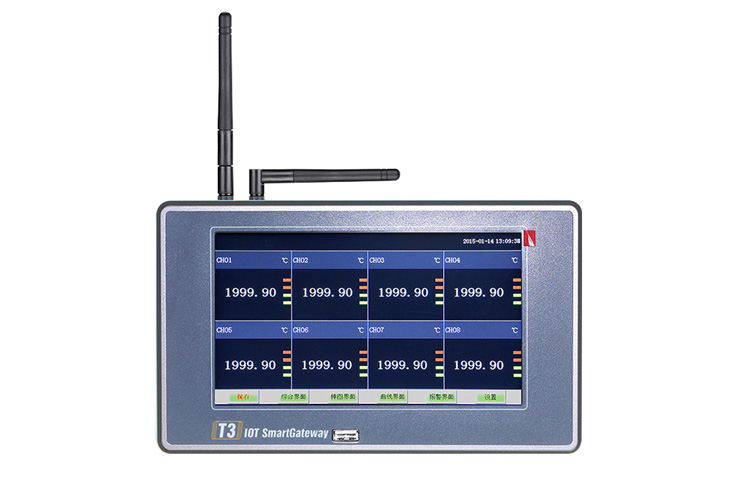

SALUKI T3 Wireless Data Acquisition (7 inch, 70MB, 1-256 channels)

Name: SALUKI T3 Wireless Data Acquisition (7 inch, 70MB, 1-256 channels)
Brand: SALUKI

ModelT3

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Input Signals

Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25

Thermal resistance: pt1000, pt100, cu50

Current (DC): 4-20mA, 0-20mA, 0-10mA

Voltage (DC): 0-5V, 0-10V, 1-5V

Number of Channels: 1–256 (need to use with USB-1608 modules)

Accuracy: ≤ ±0.2%F.S

Power Consumption: ≤ 25 VA

Storage Interval: Self-setting from 1s to 19999s

Internal Memory: 70MB

Acquisition Mode: Cyclic

Alarm: High & low limit, 4 alarms per channel

Relay: 8-channel NO relay 250VAC/3A (optional)

Power Supply: 24VDC ±10%

Distribution Output: 1-channel 24VDC (optional multi-channel 24V or 5VDC output)

Communication: Standard RS232C (optional Ethernet, RS485, USB)

Standard Modbus RTU protocol

Temperature: Operating: -10°C to +50°C

Humidity: Operating: 0 – 80% RH

Dimension: 215.6 × 129.4 × 34.5 mm

Datasheet
