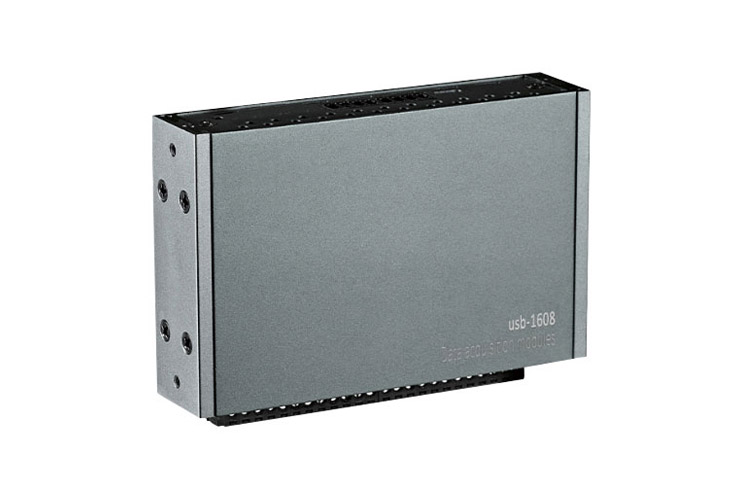

SALUKI USB-1608 Temperature DAQ Module

Input Signals

Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25

Thermal resistance: pt1000, pt100, cu50

Number of Channels: 8 – 256

Sampling: 1S or optional 0.1S

Isolation Voltage

Between power supply: 3000V DC

Between channels: 400V/AC/DC

Fault and Overvoltage Protection: Maximum withstand voltage ±15V

Input Resistance: > 2M (voltage type signal), < 50Ω (current type signal)

Temperature Drift: ± 25PPM/°C

Electrostatic Protection: 2000V

Communication Parameter: Baud rate 9600bps/115200bps, data bit 8, check bit N (none), stop bit 1

Power Supply: DC +8V to +28VDC (terminals), +5V (USB)

Power Protection: Power reverse protection, wrong connection protection

Power Consumption: 0.3W

Operation Environment: -30°C ~ +80°C, 0–100% RH (non-condensing)

Dimension: 117.6 × 76.5 × 25.7 mm

Protection Level: IP40 & Fire-proof level UL94
