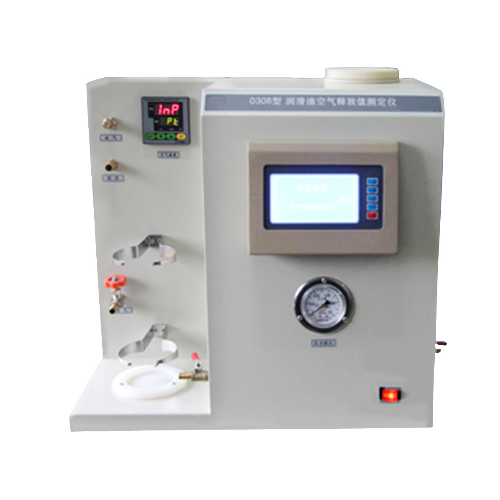

Samyon 0308 Lubricating Oils Air Release Properties Tester (1000W)

I. Main technical features

The instrument adopts advanced technologies such as single chip machine, LCD graphic display and light-touch key. It has the functions such as graphics and parameters rolling display, man-machine dialogue of parameters input and revise and prompt type input of relevant parameters. It adopts high accuracy sensor to transmit the analog signal to digital signal via A/D and process it by computer. The executive component adopts SSR technology. It can realize the high accuracy control of water bath temperature and vapour pressure temperature.

II. Main technical specifications

1. Temperature range of water bath： Room temperature~99.9℃

2. Temperature range of air bath： Room temperature~90℃

3. Temperature control accuracy of water bath： ±0.5℃

4. Temperature control accuracy of air bath： ±5℃

5. Power supply： AC220V±10% 50Hz

6. Maximum power consumption： 1000W

7. Volume of water bath： 10L

8. Net weight： 20kg

9、Outline dimension:570㎜×400㎜×500㎜（L×W×H）
