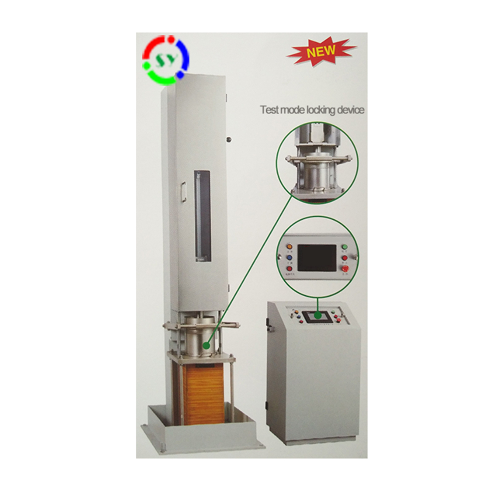

Samyon 0702A-1 Marshall Electric Compactor (457mm)

II. Main technical specifications

1. Hammer 1： 4536g±9g(Φ101.6mm×63.5mm mold)

2. Hammer 2： 10210g±10g(Φ152.4mm×95.3mm mold)

3. Fall of Hammer： 457mm±1.5mm；

4. Compaction speed： (60±5)times/min

5. Compaction times： (0～999)times

6. Wooden compaction pedestal： 457mm×200mm×200mm

7. Concrete compaction pedestal： 120mm×460mm×480mm

8.Lifting motor power: 0.01KW

9.Color touch screen: 480x270 mm

10.Power supply： AC（220±10%）V,50Hz

11.Motor power： 370W

12.Work environment:temperature -10℃～35℃,relative humidity ≤85%

13.Outline dimension： 1950mm×540mm×540mm

13.Net weight： About 180kg

III. Optional accessorry

1. Mold professional ejector

2. Asphalt mixture blender: F02-20 automatic asphalt mixture blender(recommended)
