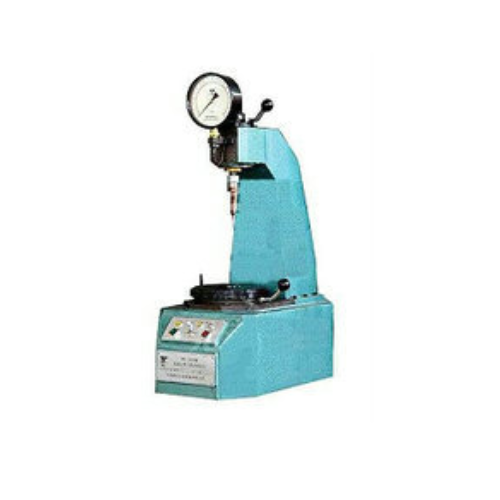

Purpose: For determining the setting time of concrete by means of penetrations resistance measurement method.
Standard: GB/T50080, JTJ053.
Container (Top×Bottom×Depth): φ160mm×φ150mm×150mm
Max. load capacity: 1000N
Max. penetrating depth: 25mm
Speed: 2.5mm/s
Bearing areas of needle: 100 mm2, 50 mm2, 20 mm2
Penetrating point: Outer ring 9 point, Inner ring 4 point
Mode of test: Hydraulic pressure, pressure gauge measuring force
Min division: 5N
Error: ±10N
Power: 220V 50Hz 70W
