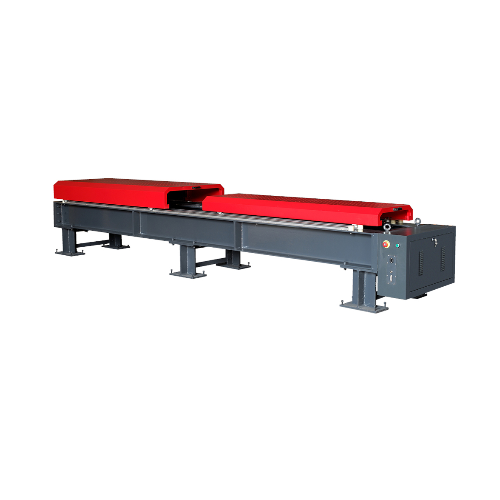

Samyon 100kN-10MN ASTM Standard Wire Rope Horizontal Tensile Testing Machine

Main Function and Usage:

This product is mainly used for Tensile Force of Steel Wire Rope, Chain, Steel strand, Oil Extraction Rod, Lifting Belt and Chain.

Main Specifications and Technical Parameter:

Structure form: Single Pole Double-acting Hydraulic Cylinder; Frame Structure

Maximum Testing Force: 100kN-10MN

Method of Testing Force: Spoke Type Load Transducer

Measure Range of Testing Force: 2%-100%

Accuracy of Testing Force: ±1%

Piston Stroke: 200mm-2000mm(can be customized)

Tensile Volume: 1000mm-20000mm(can be customized)

Range of Constant: Speed Testing Force Control0.1kN-30kN/s

Speed of Testing: 0.1mm/s-100mm/s

Space adjustment: by Electronic
