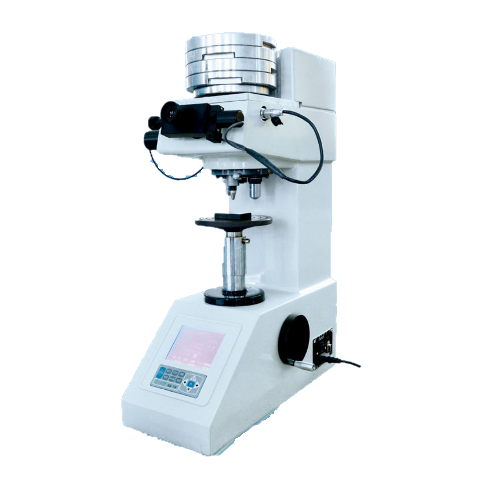

Feature & Use:
RS232 data interface, built-in printer
Hardness conversion between different hardness scales
Automatic testing process
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
It's suitable to determine the Vickers hardness of ferrous metals (no including cast iron), non-ferrous metals.
Specifications：
Measuring range: 5-3000HV
Test force: 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N
(0.5, 1, 2, 2.5, 3, 5, 10kgf)
Measuring accuracy of micrometer: ±0.01μm
Test force dwelling time: 0~99 seconds
Optical system:
Objective lens: 10X (for observation), 40X (for measurement)
Eye lens: 12.5X
Total magnification: 125X (for observation), 500X (for measurement)
Max. Height of specimen: 130mm
Depth of throat: 110mm
Size of XY coordinate worktable: 100×100mm
Travel of XY coordinate worktable: 25×25mm
Resolution of XY coordinate worktable: 0.01um
Language: Chinese/English
Power supply: 220V AC/110V AC, 50Hz
Power consumption: ≤50W
Overall dimensions: 486×326×675mm
Weight: approx. 88 kg
Standard accessories：
Coordinate anvil: 1 pc.
Thin shaft anvil (Ø0.3- Ø5mm): 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Vickers standardized block: 2 pcs.
Optional accessories
CCD image processing system
