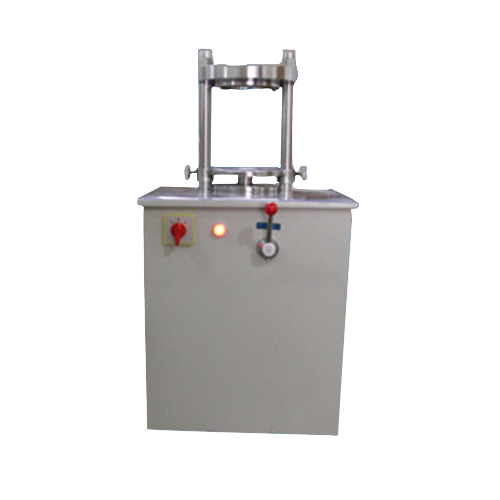

Samyon 200S Electric Hydraulic Pressure Ejector (30MPa)

I.Main technical characteristics

1. Multifarious specimens to demould

1) Marshall mold

Specimen dimension: Φ101.6 mm×63.5mm；Φ152.4 mm×95.3mm

2) Cement compression resistance mold

Specimen dimension: Φ150mm×150mm；Φ100×100mm；Φ50×50mm

3) Earthwork heavy(light) type compactor mold

Volume:2177cm³,997cm³

2. Effective demould and noiseless

3. All steel material,sturdy and durable.

4. Bi-direction work oil cylinder,free up and down

II.Main technical parameters and index

1. Peakload: 20T

2.Maximum stripper length: 240mm

3. Oil pump working pressure: 30MPa

4. Demoulding speed: 200mm/min

5. Motor power: 1.1kW

6. Power supply: AC380V/50Hz

7. Machine gross weight: 200kg

8. Outline dimension: 530mm×500mm×1050mm(L*W*H)
