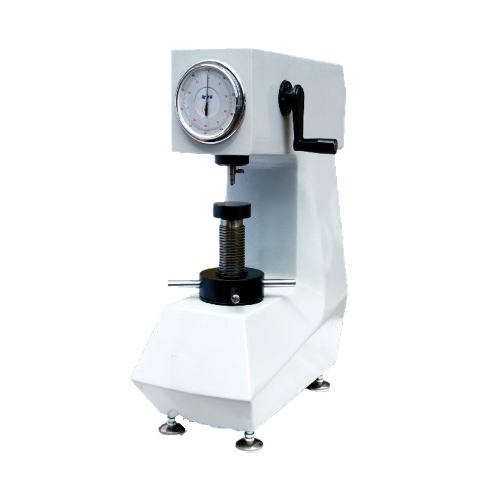

Feature & Use
* Optimized mechanical frame for small test pieces.
* Manual testing process, no need for electric controlling
* It is steady and reliable for testing of curved surface
* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
It is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Specifications
Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
Test force: 588.4, 980.7, 1471N (60,100,150kgf)
Max. height of test piece: 100mm
Depth of throat: 105mm
Min. scale value: 0.5HR
Dimensions: 460 x 250 x 550mm
Weight: approx. 50 kg
Standard accessories
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16”steel ball penetrator: 1 pc.
Rockwell standardized block: 3 pcs.
