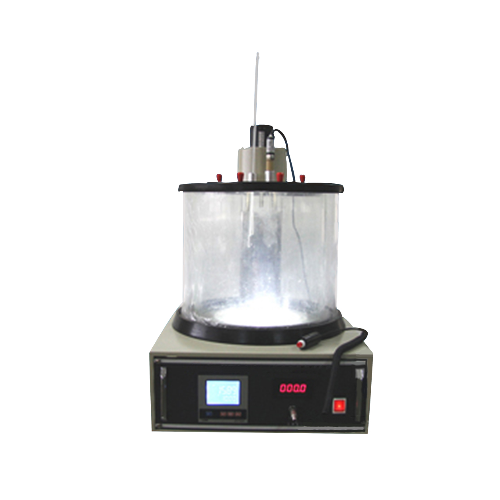

Samyon 265D-1 Kinematic Viscometer (1800W)

1. Power supply： AC 220 ± 10 %, 50 Hz.

2. Heating power：1000W(auxiliary heating), 600W(temperature control heating)

3. Stirring motor： 6 W, 1200 RPM

4. Temperature range： Ambient to 100.0℃.

5. Temperature control accuracy： ±0.01℃.

6. Timer： 0.0s~999.9s

7. Constant temperature bath： 20L, double shall structure.

8. Ambient temperature： -10℃～+35℃

9. Relative humidity： ＜85％

10.Maximum power consumption： 1800W.

11.Capillary viscometer tubes(Pinkevitch viscometer)： 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm

12. Dimension： 530mm×400mm×670mm Net weight： about 42Kg

Note:

This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.And the water bath has three holes.The user can put three viscometers .
