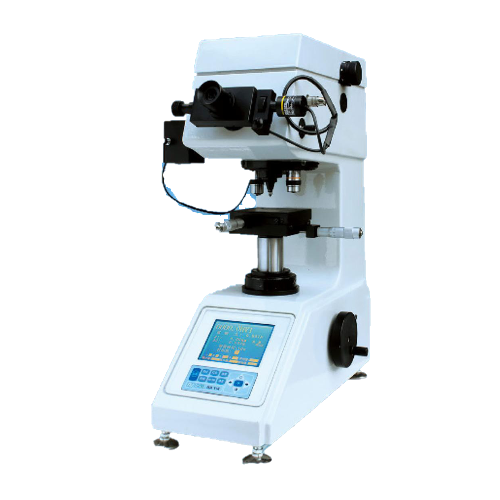

Samyon 310HVS-5 Digital Display Vickers Hardness Tester (5-3000HV)

Feature & Use:

Automatic turret shifting between penetrator and objective lens, RS232 data interface, built-in printer

Hardness conversion between different hardness scales

Automatic testing process

Knoop indenter is optional for Knoop hardness testing

Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384

It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Specifications：

Measuring range: 5-3000HV

Test force: 1.961, 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N

(0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5kgf)

Hardness scale: HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5

Measuring accuracy of micrometer: ±0.2μm

Resolution of micrometer: 0.01μm

Test force dwelling time: 5~99 seconds (1 second for incremental quantity)

Optical system:

Objective lens: 10X (for observation), 40X (for measurement)

Ocular lens: 10X

Total magnification: 100X (for observation), 400X (for measurement)

Range of measurement: 800um

Max. Height of specimen: 70mm

Depth of throat: 110mm

Size of XY coordinate worktable: 100×100mm

Travel of XY coordinate worktable: 25×25mm

Resolution of XY coordinate worktable: 0.01um

Optical source: 12V/20W

Language: Chinese/English

Power supply: 220V/110V, 50Hz/60Hz

Power consumption: ≤50W

Overall dimensions: 320×470×560mm

Weight: 58 kg

Standard accessories：

Coordinate anvil: 1 pc

Thin shaft anvil (Ø0.3- Ø5mm): 1 pc.

Thin plate anvil: 1 pc.

Flat nose pliers: 1 pc.

Large V-notch anvil: 1 pc.

Small V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Vickers standardized block: 2 pcs.

Micro-Vickers standardized block: 1 pc.

Optional accessories：

RS232 software

Knoop penetrator

SP-5 Vickers Video measuring apparatus

CCD camera and image processing system
