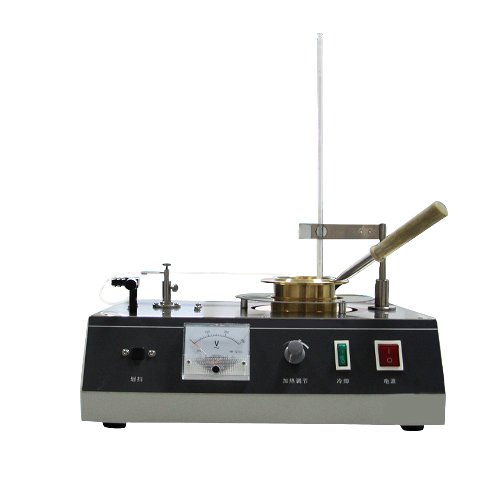

Samyon 3536 Cleveland Open Cup Flash Point Tester (650W)

1. Power supply: AC（220±10%）V, 50Hz.

2. Heating device: Quartz tube furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W.

3. Test flame applicator: It applies the test flame automatically.

4. Thermometer: (-6～400)℃. It is the same as thermometer ASTM 11C.

5. Igniting device: (1) Ignition source: coal gas(or civil gas)

(2) Flame diameter is 3.2mm～4.8mm

6. Ambient temperature: (-10∼50)℃

7. Relative humidity: ≤85%

8. Maximum power consumption: 650W

9. Dimension: 350mm×290mm×350mm (thermometer is not included)
