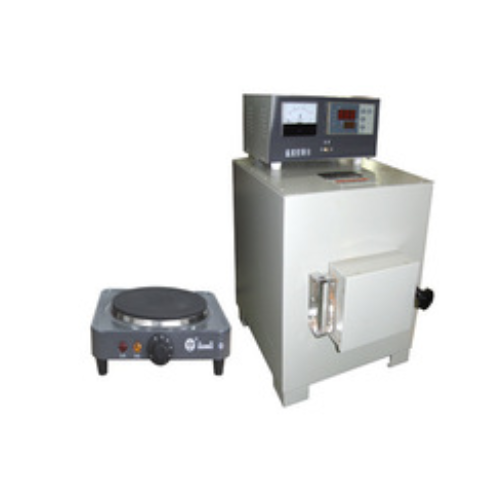

Samyon 508 Ash Content Tester (5000W)

1. Box-type heating furnace

(1) Power supply: AC220V±10%, 50 Hz

(2) Rated power: 2.5 kW

(3) Rated temperature: 1000℃

(4) Temperature rising time for empty furnace: ≤50 min

(5) Power consumption for empty furnace:≤800W

(6) Heat savings: ≤5kW.h

(7) Furnace temperature uniformity: ≤15℃

(8) Thermocouple: WRN-010

(9) Size of furnace chamber: 200mm×120mm×80mm

(10)Dimension: 575mm×3850mm×480mm

2. Temperature control stand

(1) Rated controllable power: 5000W

(2) Power supply: AC(220±10%)V, 50Hz

(3) Maximum control temperature: 1200℃

(4) Temperature controller: DTW2001

(5) Thermocouple: WRN-010

(6) Dimension: 500mm×300mm×235mm

3. Electric heating plate

(1)Rated power: 1500W

(2) Power supply: AC(220±10%)V, 50Hz

(3) Rated temperature: 400℃

(4) Heating power: （1～6）grades, continuously adjustable.

(5) Diameter of heating plate: Φ85mm

(6) Dimension: 280mm×250mm×90mm
