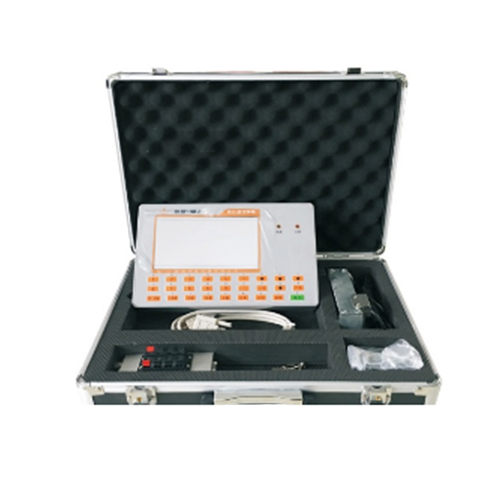

Samyon DN-W1 Type In-situtest Microcomputer (20 mV ~ + 20 mV)

1. The host computer uses 16-bit low-power and high-performance MCU MSP430F5437A as the control center, and 256KB Flash memory for storing programs. 16KB static RAM memory is used for data processing and 16MB Flash memory for data collection.

2. The display screen is a 7 inch TFT LCD with a window area of 156 x89 (mm)

3. Three differential input channels, each with a measurement range of 20 mV~+20 mV

4. Linear error of instrumentation measurement system: <0.1%

5. Deep sampling interval: 10cm

6. External probe specifications: static penetration probes of various cross-sections, three-bridge static penetration probes of pore pressure, multi-function wave velocity probes, cross-plate shear probes of various specifications.

7. In-machine data storage: 4096 storage spaces, 1024 data storage at most, 350 multi-holes

8. Voltage and power consumption are about 2W for in-machine batteries and 2.5W for external voltages
