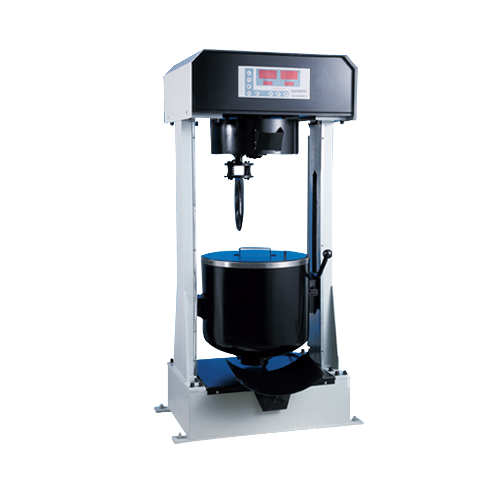

Samyon F02-20 Automatic Mixture Blender (20L)

I. Main technical features

1. This instrument adopts advanced microcomputer control technology. Temperature can be set from ambient to 200℃ at will and automatically adjusted by PID. The blending time can be controlled automatically. It achieves the automation for operation.

2. It has protecting function for phase sequence which can prevent the machine from damage because of phase sequence fault.

3. Floor type structure. Reasonable design and easy to use.

II. Main technical specifications

1. Blending amount： 20L

2. Temperature control range： Room temperature~200℃

3. Temperature control accuracy： ±5℃

4. Timing range： (0~999)s

5. Timing accuracy： ±0.1s

6. Rotation rate of paddle：

Complete revolution 47R/min, Autorotation 76R/min

7. Blending motor：

Alternating current 380V, 550W；1400R/min；50Hz

8. Lifting motor：

Alternating current 380V,250W；1400R/min；50Hz

9. Overall dimension： 600mm×400mm×1300mm

10. Net weight： 215Kg

11. Power supply： AC（380±10%）V；16A；

50Hz（three-phase four-wire with null line

12. Ambient temperature： (-5~+50）℃

13. Relative humidity： ≤80%
