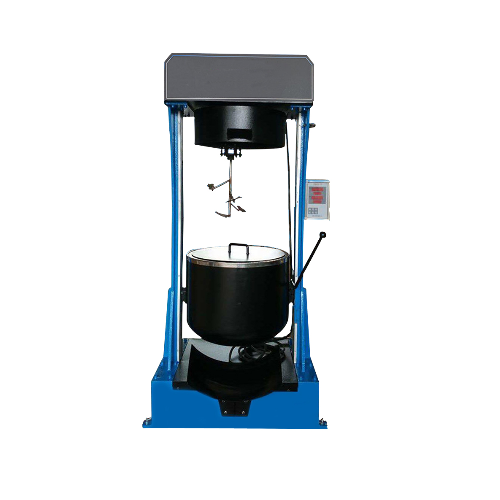

Samyon F03-60 Automatic Mixture Blender (60L)

1.Blending curbage :60L ;

2.Range of temperature controlling :ambient temperature ~200℃ ;

3.Temperature controlling accuracy :+5℃ ;

4.Timing range :0~999 s ;

5.Timing accuracy :+0.1 s ;

6.Blending speed :

(1) Rotation speed: 67 ring /min;

(2) Revolution speed: 42 ring /min;

7. Stir motor: 380V, 2200W, 1400 ring/min, 50Hz;

8. Going up and down of the motor: 380V, 750 W, 1400 ring /min, 50Hz;

9. Environment temperature:-5℃ ~+50℃;

10. Environment humidity: ≤80% (relative humidity);

11. Dimension: 1066mm*650mm*2100mm;

12. Total weight: 1100 kg;

13. Power Supply: AC (380+10), 50Hz, 30A (three-phase four-wire system, with zero line).
