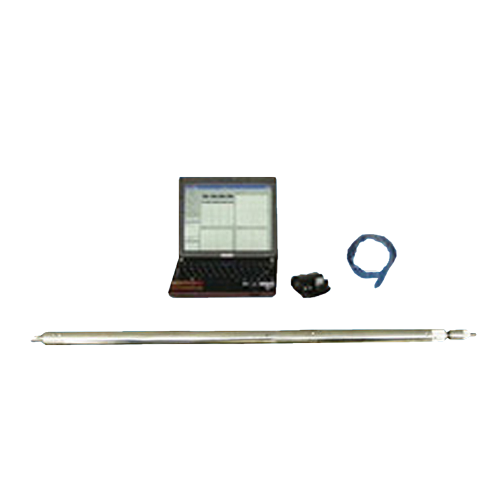

I.Main technical features
1. It adopts a high precision fiber optic gyroscope as the measuring component. Small size and long lifetime. Good shock and vibration resistance. The zero drift is small.
2. It adopts a high precision double-shaft sensor to measure the dip angle. The dip angle data will be collected by 24 bit AD and processed.
3. It is no need to do surface orientation. The true north azimuth angle can be measured at any time.
4. Equipped with special software, it can show test data table, and plot plane diagram, sectional diagram, side projection diagram, and space trace diagram.
II.Main technical specifications
1. Measuring range:
Angle: 0 ° ~ 50 °
Azimuth: 0 ° ~ 360 °
2. Measurement accuracy:
Angle measurement error: ±0.2°
Azimuth measurement error: < ±2° (angle 1 ° ~ 50 °)
The azimuth drift is < 0.3°/h
3. Measuring depth: 1500 m(temperature <60 ℃)
4. Measurement mode: measuring point
5. Charging Power: AC 100V～AC 240V，50Hz
6. Ambient temperature: -10℃～55℃
7. Measuring probe dimensions and weight: Φ40 mm×1600 mm
