I.Main technical characteristics
1.The maximum feature of instrument is to realize the single position and sole point measurement under the. well.
2.Using high-precision 24-bit A / D, gravity accelerometer and three-dimensional magneto-resistive sensors, measurement data reliability and high accuracy.
3. Application of digital timing and digital storage technology, It independently measures the angulus parietalis and azimuth of the drill hole through the single-point mode.
3. The use of seismic design, seismic capability of the instrument, the overall performance of the index much higher than conventional mechanical compass inclinometer instruments.
Reasonable price, high accuracy, no cable, the latest technology research crystallization of the oblique technology.
II. Main technical parameters
1. Inclinometer depth: ≤1500;
2. Measuring range and error:
Angle measuring range: 0 ~ 50 °, measurement error: ± 0.2 °;
Azimuth measuring range: 0 ~ 360 °;
When the angle 1 ~ 3 °, the measurement error: ± 5.0 °;
When the apex angle of 3 ~ 50 °, the measurement error: ± 3.0 °;
3. Measuring mode: single point measurement location;
4. Measurement delay time: (1 to 180) minutes adjustable;
5. Power supply: Built-in lithium battery, a charge lasts about 32 hours (new battery);

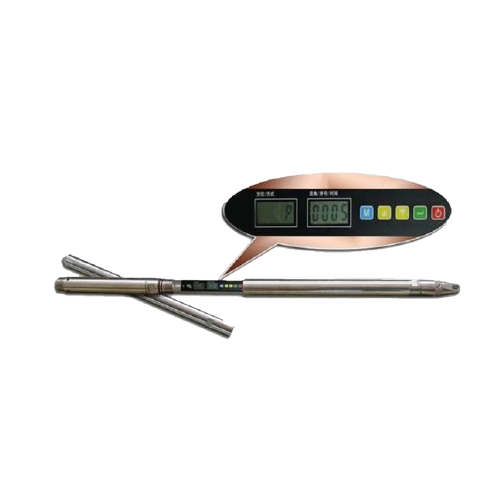

6. Inclinometer probe Overall: Ф40mm × 1320mm;
7. Environmental temperature: 0 ℃ ~ 55 ℃.
