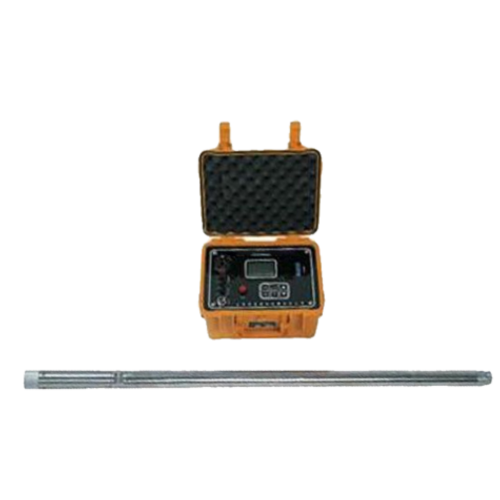

Samyon KXP-3A2 Portable Digital Inclinometer (0 ~ 50 °)

Name: Samyon KXP-3A2 Portable Digital Inclinometer (0 ~ 50 °)
Brand: Samyon

ManufacturerSamyon(View more products from this manufacturer)

ModelKXP-3A2

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

I. Main features

1. Using high-precision gravity accelerometer and three-dimensional magneto-resistive sensors measuring instrument system, the sensitivity is high, the repeatability is good, and the volume is small.

2. Using modern digital signal processing technology, to accurately calculate angle and azimuth, the measurement results to achieve high precision requirements.

3. The application of modern communication coding technology, long cable digital signal reliable transmission, improves the anti-interference ability of the instrument.

4. The inclinometer probe canceled hammer swing member, the instrument greatly improve seismic performance; actual measured depth interval point and measuring points can be arbitrarily chosen, improve measurement efficiency.

5. Using the high brightness LCD graphical display mode, the control unit by 6 control keys to complete the man-machine interactive operation, the measurement data stored automatically recorded, without human intervention.

6. The keyboard and display community physiognomy combined, easier to use, buy mini-printers, can also carry out on-site printing inclinometer results.

II. Technical Specifications

1. Inclinometer depth: ≤1200 m;

2. Parameter measurement range and accuracy:

Angle measuring range: 0 ~ 50 °, measurement accuracy: ± 0.2 °;

Azimuth measuring range: 0 ~ 360 °;

When the angle 1 ~ 3 °: measurement error: ± 5.0 °;

When the apex angle of 3 ~ 50 °, the measurement error: ± 3.0 °;

3. Measurement: the measuring point and the measured depth interval points arbitrarily determined;

4. Data storage: the maximum 100 sets of measurement data;

5. Power Supply: AC 220V ± 10%, 50Hz;

6. Ground control unit working environment: temperature: -10 ℃ ~ 50 ℃;Relative humidity: ≤85%;

7. Inclinometer probe Working Environment: Temperature: 0 ℃ ~ 55 ℃;Pressure: ≤15MPa;
