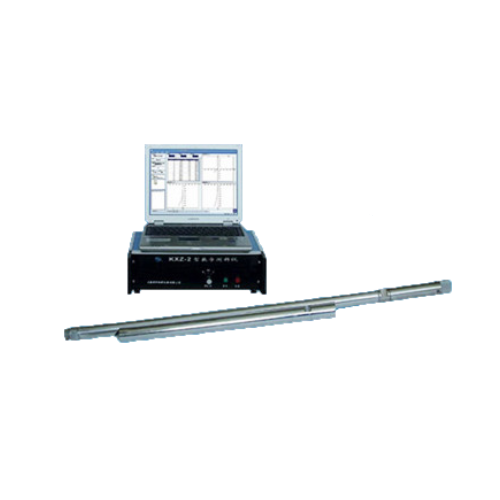

1. Inclinometer depth: ≤1200 meters.
2. Parameter parameter range error
Angle measuring range: -60 ~ 60 °, the error is ± 0.1 ;
Azimuth measuring range: 0 ~ 360 °, the error is ± 1.5 ;
Tools for angle measurement range: 0 ~ 360 °, the error is ± 2.0 ° (alternative parameters);
3. Measurement: the measuring point and the measured depth interval points arbitrarily determined;
4. Power Supply: AC 220V ± 10%, 50Hz;
5. Ground control unit working environment: Temperature: -10 ℃ ~ 50 ℃;Relative humidity: ≤85%;
6. Inclinometer probe Working Environment: Temperature: 0 ℃ ~ 55 ℃;Pressure: ≤15MPa;
7. Ground control unit Dimensions: 385 × 300 × 240 (mm);Weight: 8 (kg);
8. Inclinometer probe Dimensions: Φ40 × 1600 (mm); Weight: 7 (kg);
9. Recording: Real-time recording date, time, print the results.
