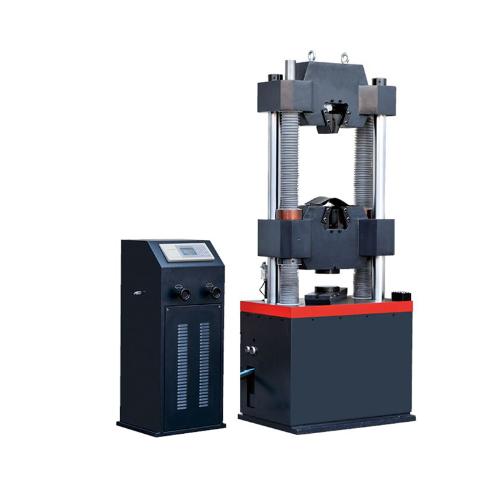

Samyon SE-1000B Hydraulic Tensile Compression Force Testing Machine (1000 kN)

Main Function and Usage

1.It is mainly used in the tensile testing of metal materials with obvious yield phenomenon.

2. Control method of rate testing: manual control.

3.It can be used in testing the tensile strength, yield strength, percentage elongation after fracture and other mechanical performance index of the metal materials.

Main Specifications and Technical Parameter

Maximum Testing Force: 1000 kN

Class of Testing Machine: Class 1

Efficient Measure Range: 10%-100%FS

Relative Accuracy of Value Display: ±1%

Tensile Volume(mm): 700

Compression Volume(mm): 550

Column Space(mm): 550

Round Specimen Clamping Range(mm): Φ6-Φ45

Flat Specimen Clamping Thickness(mm): 0-30

Max. Width of Flat Specimen Clamping(mm): 75

Pressure Plate Dimension(mm): Φ160

Overall Dimension(L*W*H)(mm): 910*700*2300

Oil Source Console Dimension(mm): 700*700*1500

Total Motor Power(kW): 2

Total Weight(kg): 2800
