Application

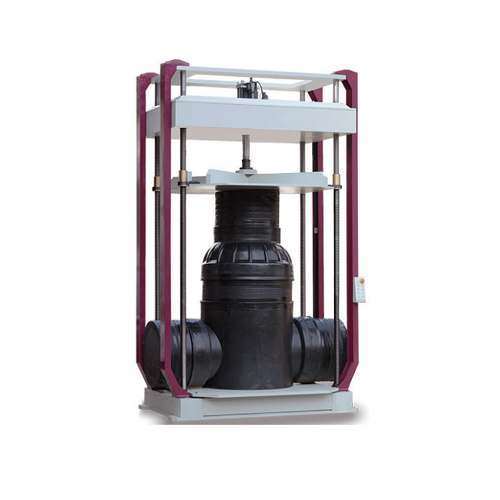

Static constant loading tester is mainly used to determine the resistance to the axial static constant load of plastic manhole. A constant force is steadily loaded on the axial direction of the manhole for specified time, when test is finished, observing the sample appearance (deformation, collapse, crack or crazing), determine the deformation in axial direction and calculate the deformation ratio of manhole. SYICL is also suitable for ring stiffness test, flattening test, ring softness test of thermoplastic.
Standard: BS EN 13598-1:2003 and the equivalent.
Parameter:
Max test force: 200kN, 350KN or 600KN
Force accuracy: +/-1%
Force display resolution: 1/200000 FS
Crossbeam displacement accuracy: +/-1%
Max. dimension of manhole base: φ1600mm
Control accuracy of constant load: +/-1%
Control range of constant load: 5%-100%FS
Speed error: +/-1%
Max. journey: 2500mm
Test speed: 5 ~ 200mm/min (stepless)
Timing range: 0h~ 9999h
Timing accuracy: +/-0.1%
Security protection grade: IP55
Max.Force: 10kN
Speed: (0.05-500)mm/min
Tensile space: (0-900)mm
Crossbeam resolution: 0.001mm
Display & Output: PC control, Printer
