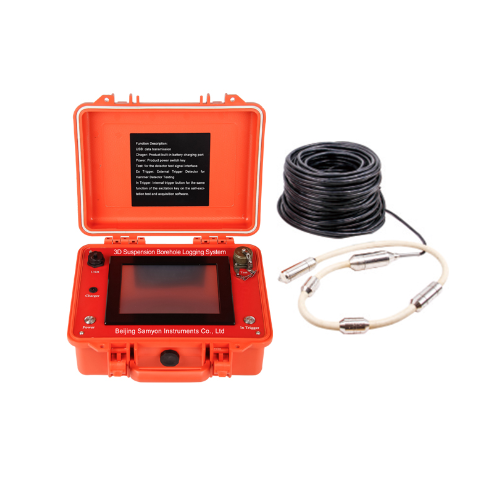

Samyon SY-0 Suspension Borehole Logging System (0-50Kv)

Display: 8-inch high-definition high-brightness color screen, color waveform

Operating system: WinCE 6.0

Operation method: touch screen

Number of channels: 1 to 3 channels optional

Sampling interval: 0.001ms to 1000ms

Sampling points: 512~16384

Time consistency: ≤ 1 sampling interval

Amplitude consistency: <3%

Frequency Range: 1 to 150 Hz

Preamplifier gain: 20 to 60 dB

Trigger pre-value: 0-100%

Gain: 10-600

Trigger channel: 1, 2, 3, external trigger (4 channels are optional)

A/D conversion accuracy: 16 bits

Input resistance: Greater than 100kΩ

Input range: ≤ plus or minus 5V

Trigger mode: Pulse, on and off

Delay: 0 to 10000ms optional

Storage capacity: 16G hard drive

Communication port: Support U disk, mouse, keyboard

Operating temperature: -10 ° C ~ +42 ° C; humidity: <90%

Storage temperature: -20 ° C ~ +60 ° C

Power supply: DC 48V, less than or equal to 3A, charging voltage 220V ± 5%

Volume: 323 × 275 × 135 (mm)

Weight: 3.8Kg

Wave speed detector (self-excited probe)

Detector: Natural frequency 60Hz

Sensitivity: 30V/m/s

Electromagnetic excitation source: DC 48V, current ≤ 3A

Ground pulsation sensor (optional)

Frequency band: 0.5 to 100 Hz

Sensitivity: 1v/mm/s
