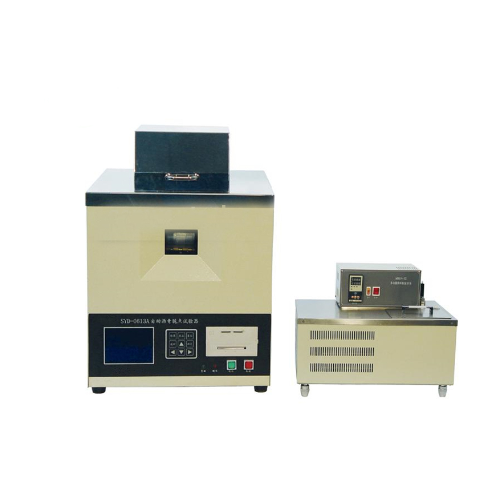

I. Main technical features
It is controlled by micro computer. The cooling rate is controlled automatically. It automatically timing to bend samples.The test data is shown on the colored LCD and outputted by built-in printer.
II. Main technical specifications
1. Power supply: AC(220±10%)V,50Hz
2. Refrigeration mode: Low temperature circulatory bath
3. Cooling rate: (1±0.5)℃/min
4. Temperature measuring range: -30℃~25℃
5. Temperature measuring error: ±0.5℃
6. Steel slice: 41mm×20mm×0.15mm
7. Test samples: It can determine 3 samples at the same time
8. Ambient temperature: Room temp. ~+30℃
9. Relative humidity: ≤85%
10.Power consumption: 450W(breaking point tester)+ 1600W(low temperature circulatory bath)
11.Overall dimension: 500mm×400mm×570mm(breaking point tester)
