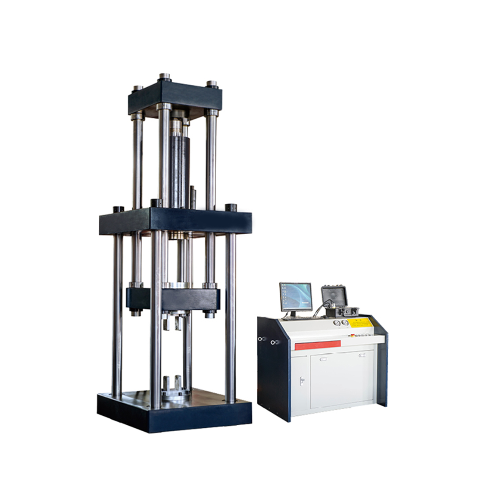

Samyon SY-50 Special Testing Machine and Force Standard Machine (50kN ~ 50MN)

Product Application:

The measurement and measurement of the standard force gauge, the measurement of the load cell and the load cell (non-linearity, repeatability, sensitivity, etc.).

Comply with JJG1116-2015 "Superimposed Force Standard Machine Verification Regulations", JJG669-2003 "Weighing Sensor Calibration Procedures", JJG144-2007 "Standard Force Measuring Instruments Verification Regulations"

Specifications：

Test force range: 50kN ~ 50MN

Maximum test force: 1000kN (1MN)

Test force measurement range: 2%-100% F.S

Force value error (in, return): Within the range of 2%-10%F.S, the test data is better than ±0.03%;

Test data is better than ±0.01% in the range of 10%-100%F.S

Force value repeatability: Within the range of 2%-10%F.S, the test data is better than 0.03%;

Within the range of 10%-100% F.S; test data is better than 0.01%

Initial load discrimination: 10% FS, better than 0.01%

Load volatility: Within the range of 2%-10% F.S, the test data is better than 0.01%;

Test data in the range of 10%-100% F.S is better than 0.003%

Azimuth error: Within the range of 2%-10%F.S, the test data is better than 0.06%;

Test data is better than 0.02% in the range of 10%-100%F.S

Test space (length X width X height): 1MN (600 X 600 X 800mm)
