Product Application

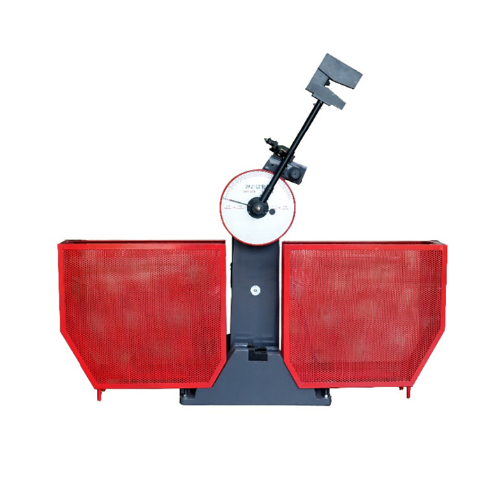

The series impact testing machine is used to test the impact resistance performance of the metal materials under live load, being an indispensable testing instrument in metallurgy and machine manufacturing units and is also a necessary testing instrument for the research of new materials in research institutions.
Parameter:
Display type: Dial display
Impact energy: 250/500J
The distance between the pendulum shaft and impact point: 800mm
Impact speed: 5.4m/s
Pre-rising angle of the pendulum: 150°
Specimen bearer span: 40mm
Round angle of the jaw: R1-1.5mm
Round angle of impact cutting edge: R2-2.5mm,R8±0.05mm
Specimen size: 10(7.5/5/2.5)mm*10mm*55mm
Dimension: 2200*650*1960mm
Angular accuracy: 0.1°
