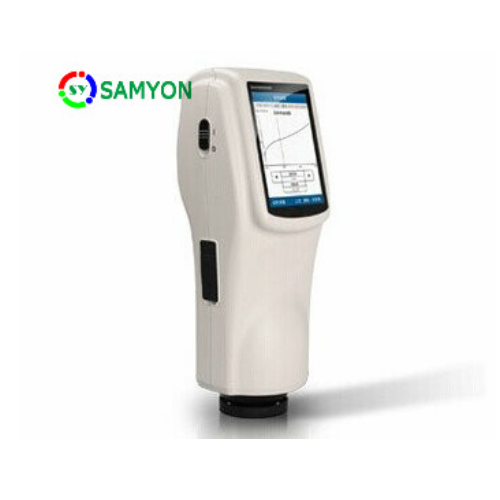

Samyon SY800 Spectrophotometer (Φ58mm)

Illuminating/observation system: 45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15，GB/T 3978

Integrating sphere Size: Φ58mm

Light Source: combined LED sources

Sensor: Silicon photodiode array

Wavelength range: 400~700nm

Wavelength interval: 10nm

Reflectance range: 0~200%

Measuring Aperture: Φ8mm

Color Space: CIE LAB, XYZ,Yxy, LCh,CIE LUV

Color difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00

Other Chromaticity Data: WI(ASTM E313， CIE/ISO, AATCC, Hunter), YI(ASTM D1925， ASTM 313), TI(ASTM E313， CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness

Observer: 2°/10°

Illuminant: D65，A,C,D50，D55，D75，F2，F6，F7，F8，F10，F11,F12

Display Data: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time: 1.5s

Repeatability: Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement: Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension: L*W*H=90*77*230mm

Weight: 600g

Battery: Li-ion battery. 5000 times within 8 hours

Lamp Life: 5 years, more than 1.6 million measurements

Display Screen: TFT 3.5inch, Capacitive Touch Screen

Interface: USB/RS-232

Data Memory: 1000 Standards, 15000 Samples

Operating Temperature: 0~40℃(32~104°F)

Storage temperature: -20~50℃(-4~122°F)

Standard Accessory: Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory: Micro Printer, Universal Test Compon

Others: Provide complete spectrum reflectance curve, Input L, a, b value manually

Notes: The specifications are subject to change without notice
