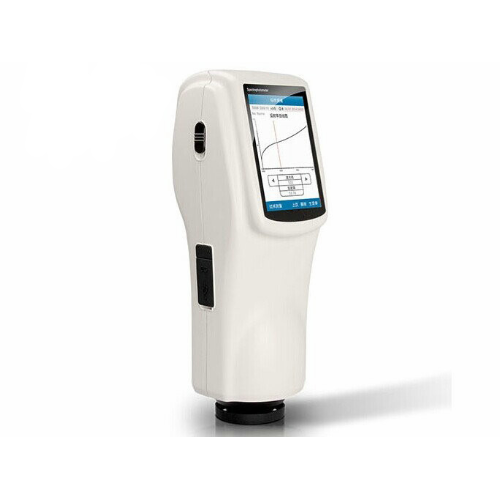

Samyon SY810 Portable Spectrophotometer (Φ58mm)

Illuminating/observation system: d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.

Integrating sphere Size: Φ58mm

Light Source: combined LED sources

Sensor: Silicon photodiode array

Wavelength range: 400~700nm

Wavelength interval: 10nm

Reflectance range: 0~200%

Measuring Aperture: Φ8mm

Color Space: CIE LAB, XYZ, Yxy, LCh, CIE LUV， LAB&WI&YI

Color difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00，ΔE(h)

Other Chromaticity Data: WI(ASTM E313， CIE/ISO, AATCC, Hunter), YI(ASTM D1925， ASTM 313), TI(ASTM E313， CIE/ISO), Metamerism Index (Mt), Strength Color Stain, Color Fastness

Observer: 2°/10°

Illuminant: D65，A, C, D50，D55，D75，F1，F2(CWF)，F3，F4，F5，F6，F7(DLF)，F8，F9，F10(TPL5)F11(TL84), F12(TL83/U30)

Display Data: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting

Measurement Time: 1.5s

Repeatability: Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement: Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension: L*W*H=90*77*230mm

Weight: 600g

Battery: Li-ion battery. 2800 times within 8 hours

Lamp Life: 5 years, more than 1.6 million measurements

Display Screen: TFT 3.5inch, Capacitive Touch Screen

Interface: USB/RS-232

Data Memory: 1000 Standards, 15000 Samples

Operating Temperature: 0~40℃(32~104°F)

Storage temperature: -20~50℃(-4~122°F)

Standard Accessory: Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory: Micro Printer, Powder Test Box

Notes: The specifications are subject to change without notice
