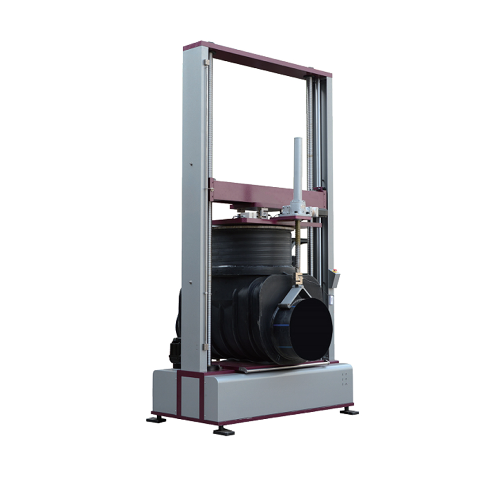

Samyon SYICM Manhole Mechanical Properties Tester (30kN)

Application:

SYICM manhole mechanical property tester is designed to determine the performance of inspection chamber, manhole frame as well as manhole wall. It can be used to test shear strength and the axial loading performance of manhole base; It can also be used to test Ring stiffness, flatness and ring flexibility test.

Standard: BS EN 13598-1:2003, ASTM D 2412-2002.

Parameter:

Max.Test force: 30kN(Dual-screw)

Load accuracy: ±1%

Load resolution: 1N

Crossbeam resolution: ±1%

Test speed: 0.5~200mm/min(Stepless)

Speed tolerance: ±1%

Pipe diameter range for Ring stiffness test: 200mm-2000mm

Inner diameter measurement range: 300mm-2000mm

Inner diameter measuring accuracy: ±0.5%

Compression plate dimension: 450mm*400mm

Manhole base diameter range: 315mm~1200mm

Width of steel belt: 100mm

Power supply: 220VAC 50Hz 1.5kW

Safety protection grade: IP55

Dimension of basic frame(exclude compression plate): 1360mm*650mm*3400mm(L*W*H)

Mass of basic frame: 600kg

Dimension of shear test device: 1450mm*1450mm*2700mm(L*W*H)

Mass of shear test device: 300kg

Covering area: 2000mm*1500mm
