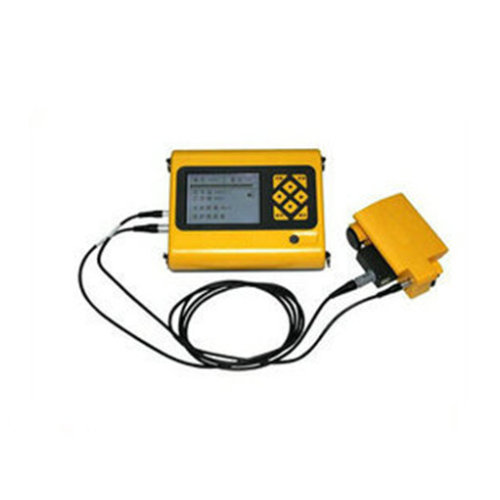

Features:
1.longer service life of the connector Clip:the instruments has long service life because of using lemo connector Clip which comes from swiss and uses for aircraft industry.
2.good quality of signal cable:the signal cable has long service life because of its flexible and substance.
3.high precision and stability:the instrument can locate the steel-bar accurately and quickly.
4.longer service life of the sensor:improve the service life by paste abrasion resistance allowance bottom of the sensor.
5.single sensor:no-change sensor in test,switching between high and low test range can assure the precision of test data and the test depth.
6.display test information real-time:display the test data directly to avoid man-made errors.
7.grid and section scan mode:instrument can display steel bar distribution and scan steel bar without concrete boundary limited.
8.three-wheel steel-bar scan system:the system can assure scan path along line and the precision of test data.
9.powerful windows data process and analysis software:software can display analysis result by diagram.test data can be export to word or Excel easily.
Technical Data
Applicable steel-bar diameter: Φ6mm-Φ50mm
Concrete backing thickness:
+ Low range：6mm~90mm；
+ High range：7mm~190mm
Permissible error
+ Low range
6~59: ±1
60~69: ±2
70~90: ±4
+ High range
7~79: ±1
80~119: ±2
120~190: ±4
Tested range of steel-bar diameter: Φ6mm- Φ50mm
Permissible error of steel-bar diameter test: ±1 grade
Applicable environmental:
+ Temperature: -10℃~＋40℃; Dampness: <90%RH
+ EMI: no Strong electromagnetic field
Power supply:6 dry cells,work more than 30 times
