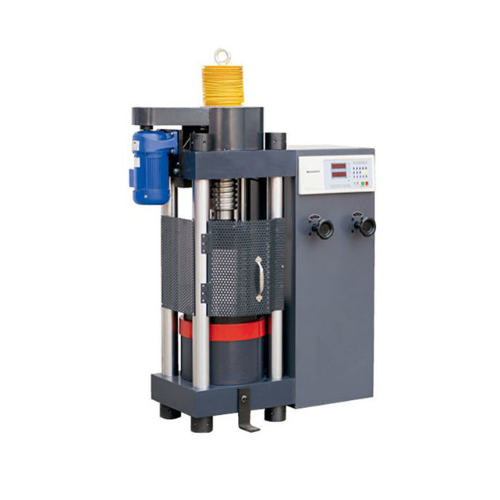

Samyon SYS-2000KN Electric Ball Screw Adjust Compression Testing Machine (2000kN)

Main Function and Usage

1. It is mainly used in the testing of compression strength of the concrete.

2. Control Method of Testing Rate: Manual Control

Main Specifications and Technical Parameter

Maximum Testing Force: 2000kN

Measure Range of Testing Force: 4%~100%FS

Relative Accuracy of Value Display of Testing Force: ≤±1%

Adjustment method of Lead Screw: Manual

Top and Bottom Pressure Plate Dimension (mm)): 260×300

Max.Space of Top and Bottom Pressure Plate(mm): 320

Max.Piston Stroke(mm): 30

Piston Diameter(mm): Φ250

Rated Pressure of the Hydraulic Pump(Amp): 40

Source Power(kW): Three phase 0.75

Overall Dimension(L*W*H)(mm): 800×500×1200

Weight (kg): 750
