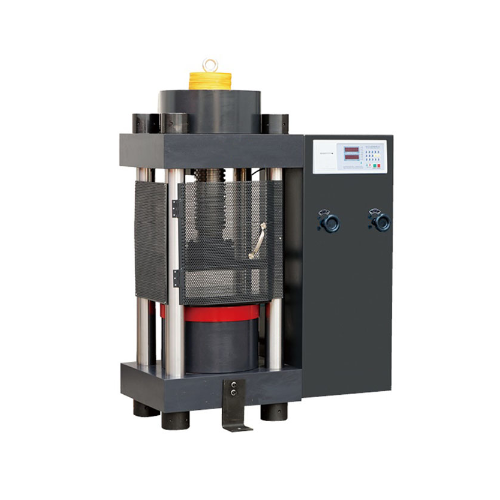

Samyon SYS-3000KN Electronic Block Compressive Strength Test Machine (3000kN)

Main Function and Usage

1. It is mainly used in the testing of compression strength of the concrete.

2. Control Method of Testing Rate: Electronic Control.

Main Specifications and Technical Parameter

Maximum Testing Force: 3000kN

Measure Range of Testing Force: 4%~100%FS

Relative Accuracy of Value Display of Testing Force: <±1%

Adjustment method of Lead Screw: Electronic

Top and Bottom Pressure Plate Dimension (mm)): 370×370

Max.Space of Top and Bottom Pressure Plate(mm): 330

Max.Piston Stroke(mm): 50

Piston Diameter(mm): Φ310

Rated Pressure of the Hydraulic Pump(Amp): 40

Source Power(kW): Three phase 1.1

Overall Dimension(L*W*H)(mm): 1000×600×1500

Weight (kg): 1800
