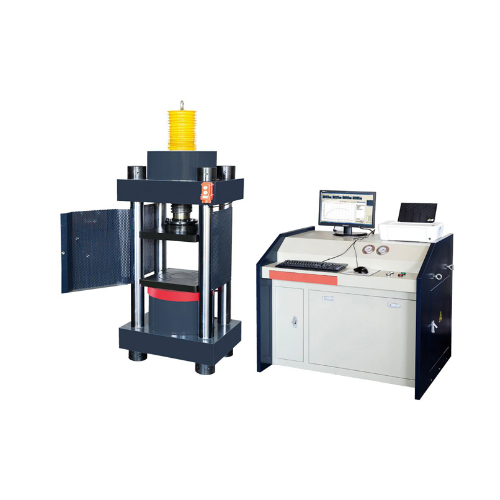

Samyon SYW-2000KN Concrete Block Compression Testing Machine (2000 kN)

Main Function and Usage

1. It is mainly used in the testing of compression strength of the concrete.

2. Control Method of Testing Rate: Electro-hydraulic closed-loop control

Main Specifications and Technical Parameter

Maximum Testing Force: 2000kN

Measure Range of Testing Force: 2%~100%FS

Relative Accuracy of Value Display of Testing Force: ≤±1%

Adjustment method of Lead Screw: Electronic

Top and Bottom Pressure Plate Dimension (mm)): 370×370

Max.Space of Top and Bottom Pressure Plate(mm): 330

Max.Piston Stroke(mm): 100

Piston Diameter(mm): Φ310

Rated Pressure of the Hydraulic Pump(Amp): 40

Source Power(kW): Three phase 1.1

Overall Dimension(L*W*H)(mm): 700×700×1600

Weight (kg): 1600
