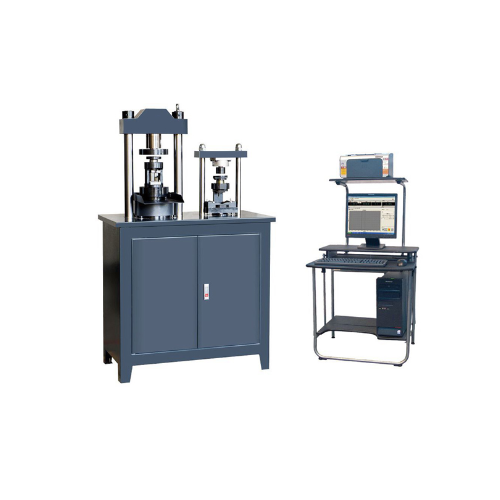

Samyon SYW-300C Automatic Compression Testing Machine (300kN/10kN)

Main Function and Usage

1.The model SYW-300C can be used in the compression and bending strength testing of cement mortar

2.Control Method of Testing Rate: Electro-hydraulic closed-loop control.

Main Specifications and Technical Parameter

Maximum Testing Force: 300kN/10kN

Measure Range of Testing Force: 2%~100%FS

Relative Accuracy of Value Display of Testing Force: ≤±1%

Loading Rate(kN/S): 0.3~10(compression)/50(bending)

Accuracy of Loading Speed: ±5%

Pressure Plate Dimension (mm)): Φ155(compression)/ 80X150(bending)

Max.Piston Stroke(mm): 80

Piston Diameter(mm): Φ130(compression)/Φ50(bending)

Max. Hydraulic Pressure(MPa): 25

Rated Flow Rate of Oil Pump(L/min): 1.52

Motor Power(kW): 0.75

Overall Dimension(L*W*H)(mm): 820×450×1300

Weight (kg): 500
