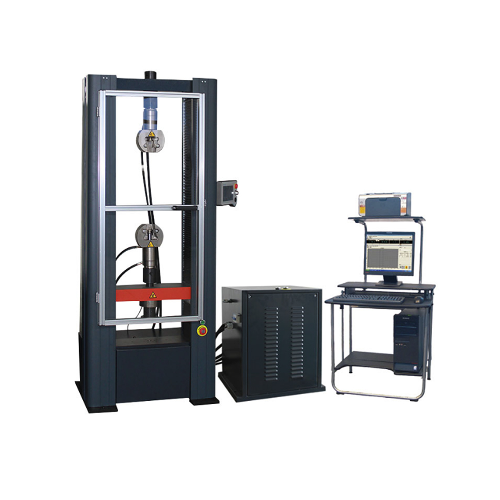

Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards: ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Main Specifications and Technical Parameter:
Max. Load(kN): 300
Structure: Four-column floor or desk model, (lower is compression and upper is tensile)
Cover: All aluminum alloy
Control method: Computer control
Load accuracy: Class 0.5
Load range: 0.2%~100%F·S
Load resolution: 1/500000
Rang of deformation: 4%-100%FS
Resolution of deformation: 0.04um
Accuracy of displacement: Within±0.5%of indicating load
Resolution of displacement: 0.01mm
Test speed(mm/min): 0.05-250 stepless arbitrary setting
Tensile space(mm): 550(can be customized)
Compression space(mm): 550(can be customized)
Test width(mm): 600(can be customized)
