Application:

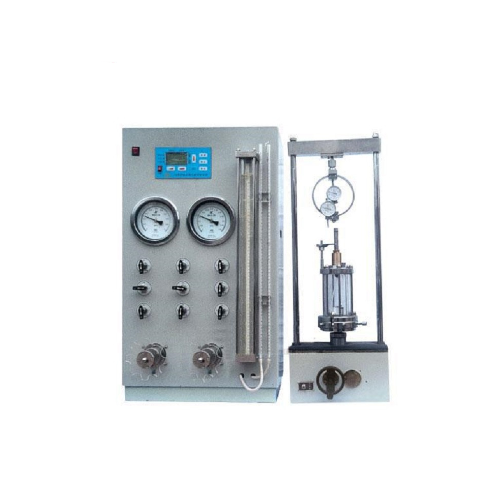

TSZ10–1.0 Bench Light-duty Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø39.1 x 80mm. It can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
Specifications:
1. Specimen : Ø39.1 x 80mm
2. Capacity : 10kN maximum
3. Strain rate : 0.016 – 1.6mm/min. mechanical speed with 6 gears
4. Platen travel: 50mm maximum
5. Confining pressure : 0 – 1MPa
6. Back pressure : 0 – 0.6MPa
7. Pore pressure : 0 – 1MPa
8. Volume deformation : 0 – 25cm, minimum division : 0.1cm
9. Axial displacement : 0 – 30mm (micrometer)
10. Power supply : 220V±10% 50Hz
11. Dimension : Main unit : 350 x 300 x 1100mm (L x W x H)
Controller : 500 x 500 x 925mm (L x W x H)
12. Weight : 170kg
