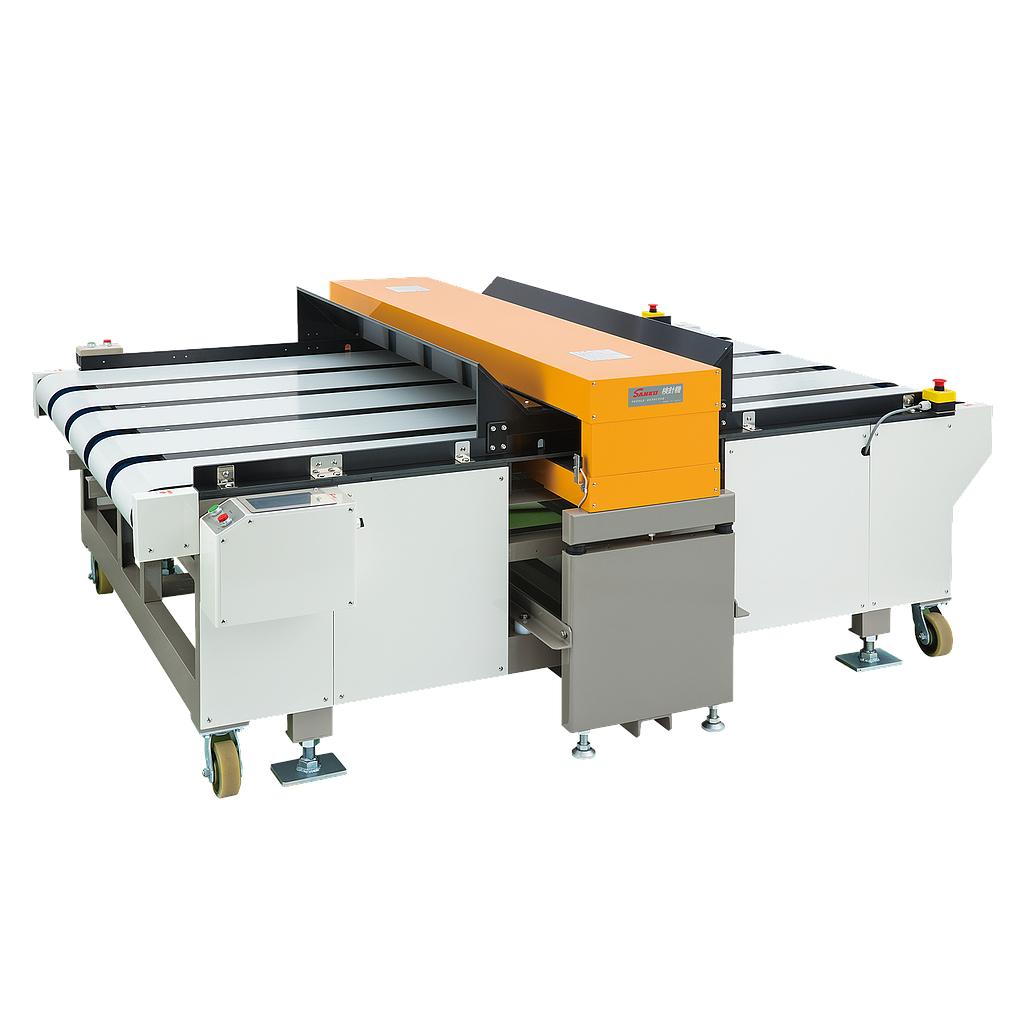

SANKO APA-1500F Conveyer Type Needle Detector (Single belt; 1500mm; 25m/min)

Name: SANKO APA-1500F Conveyer Type Needle Detector (Single belt; 1500mm; 25m/min)
Brand: SANKO

ModelAPA-1500F

OriginJapan

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Detecting method: Magnetic induction

Detecting ability: Steel ball φ1.2,φ1.5,φ2.5

Detecting area/ Passing width: 1500mm

Passing height: 150mm standard (with guide: passing height 130mm)

Alarm device: Buzzer, lamp, belt stop (with backward run function)

Belt speed: 25m/min. (50Hz, 60Hz)

Power source: AC200V, 3 phase 50/60Hz about 600VA

Dimensions: 2000(D)×1080±50(H)×2500(W)

Weight: ≈700kg

Pass line: 800±50mm

Option: foot SW, remote SW, auxiliary SW

Single belt use with the specifications
