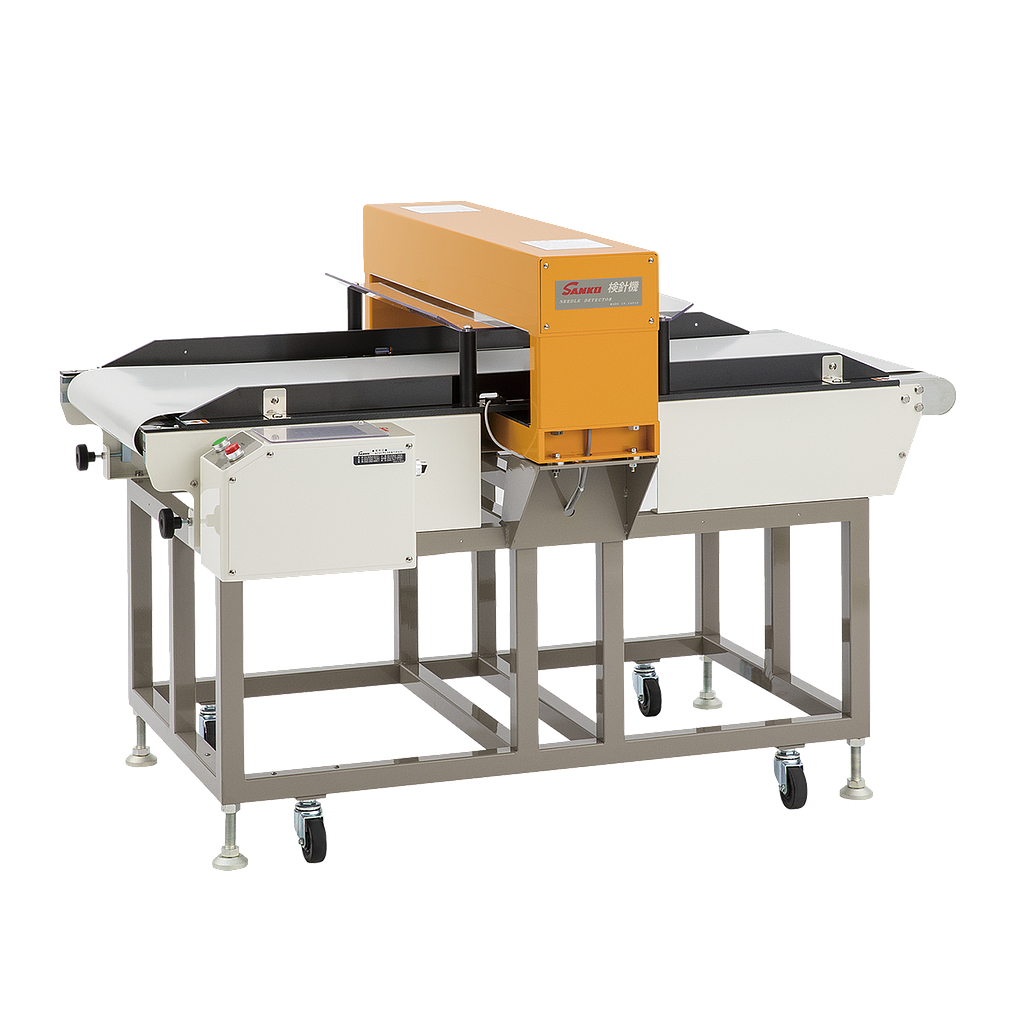

SANKO APA-6900 Conveyer Type Needle Detectors

Detecting method: Magnetic induction

Detecting ability: Steel ball φ0.8(height 120mm) ,φ1.0(height 140mm),φ1.2(height 170mm)

Detecting area / Passing width: 600mm

Passing height: 120mm (with guide: passing height 110mm)

140mm (with guide: passing height 130mm)

170mm (with guide: passing height 160mm)

Alarm device: Buzzer, lamp, belt stop (with backward run function)

Belt speed: 39m/min. (50/60HZ)

Power source: AC100～240V 50/60Hz 300VA

Dimensions: 1030(D)×1055±50(H)×1500(W) ・・・detecting height 120mm

1030(D)×1075±50(H)×1500(W) ・・・detecting geight 140mm

1030(D)×1105±50(H)×1500(W) ・・・detecting geight 170mm

Weight: about 220Kg

Pass line: 800±50mm

Option: Emergency stop SW, foot SW, remote SW
