Direct access to our certified experts
Inner Diameter:13 mm
Length: 15 m
Weight: 22.9 kg
Maximum Working Pressure: 1.4 MPa

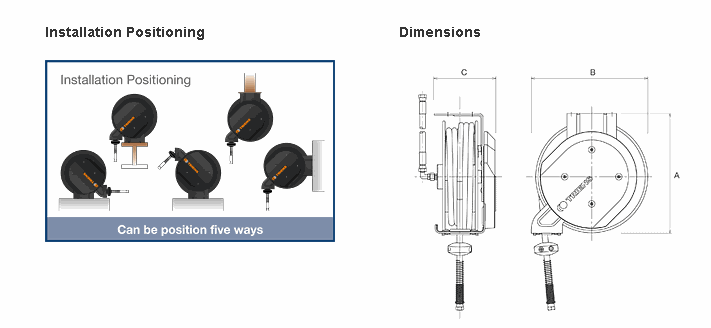

Size: 540x516x205 mm
Specifications
(Large) | ||||||||||||
Model | Hose | Maximum | Inlet Hose | Dimensions | Body |
| ||||||
Hose | Connection | Inner Diameter | Length | Connection | Length | A | B | C |
| |||
ZLW-415 | PVC | Union G 1/2 Female | 13.0 | 15.0 | 1.4 | Union G 1/2 Female | 1.0 | 540 | 516 | 205 | 22.9 |
|
ZLW-420 | PVC | Union G 1/2 Female | 13.0 | 20.0 | 1.4 | Union G 1/2 Female | 1.0 | 540 | 516 | 205 | 23.9 |
|
(Small) | ||||||||||||
Model | Hose | Maximum | Inlet Hose | Dimensions | Body |
| ||||||
Hose | Connection | Inner Diameter | Length | Connection | Length | A | B | C |
| |||
ZSW-310 | PVC | Union G 3/8 Female | 8.0 | 10.0 | 1.4 | Union G 3/8 Female | 1.0 | 392 | 380 | 202 | 14.4 |
|
ZSW-408 | PVC | Union G 1/2 Female | 13.0 | 8.0 | 1.4 | Union G 1/2 Female | 1.0 | 392 | 380 | 202 | 16 |
|
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only
